Description

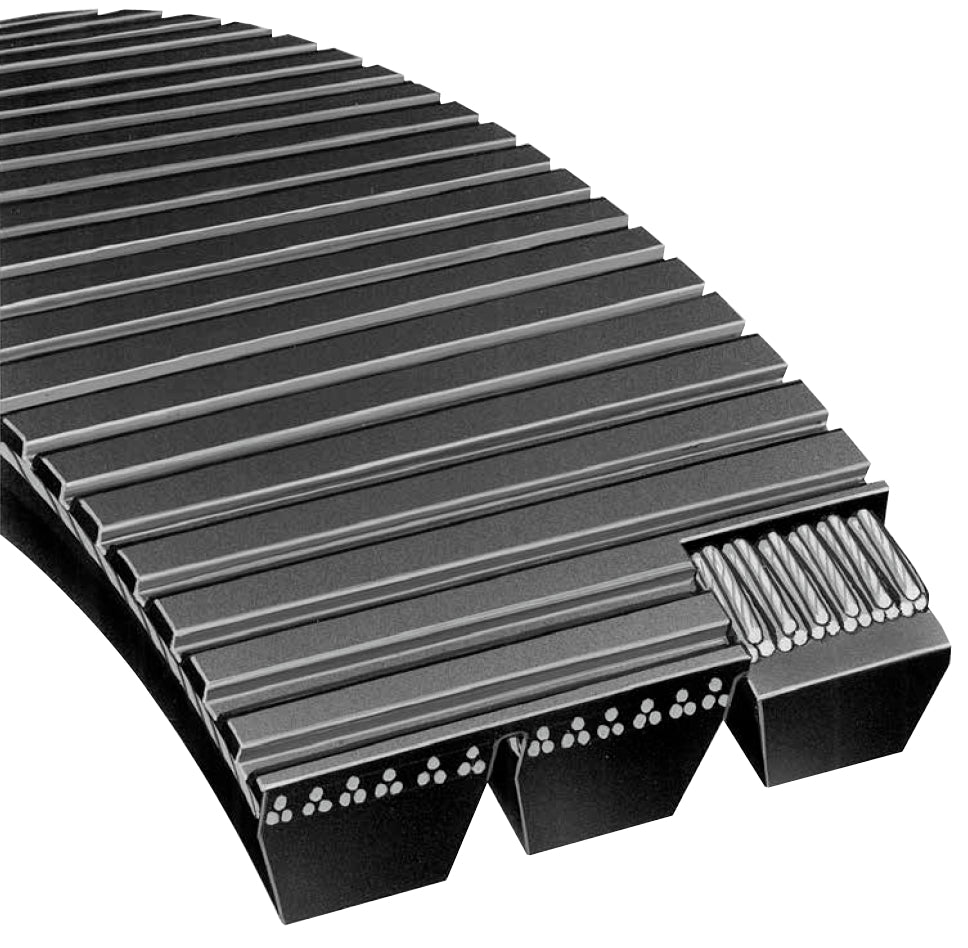

Bando - 6-11MS1850 Ideally suited for short center distances and small diameter pulleys, BanFlex® Combos banded construction minimizes or eliminates the turnover problem normally associated with small cross section belts. The ribbed construction provides superior flexibility while maintaining lateral stability.
- Precision molded, seamless polyurethane ribs provide maximum resistance to oil and traditional lubricants with virtually vibration free operation.
- Treated polyester tensile cords resist fatigue and stretch as well as providing exceptional length stability and drive uniformity.
- Polyamid tie band prevents belt whip under impulse loads.
- Polyurethane ribs on the back of the belt provide rigidity across the width of the belt and dissipate heat, leading to longer belt life.
Additional Information
Price Class621
Weight (lbs)1.796
Multiplier0.3732
Belt Width (In)1.48
Belt Width (mm)37.6
ColorBlack
Ribs/Teeth/Angle6
Height (In)0.2756
Height (mm)7
Nominal Outside Length (In)72.8346
Nominal Outside Length (mm)1850
Section11M
Number of Ribs6
