Description

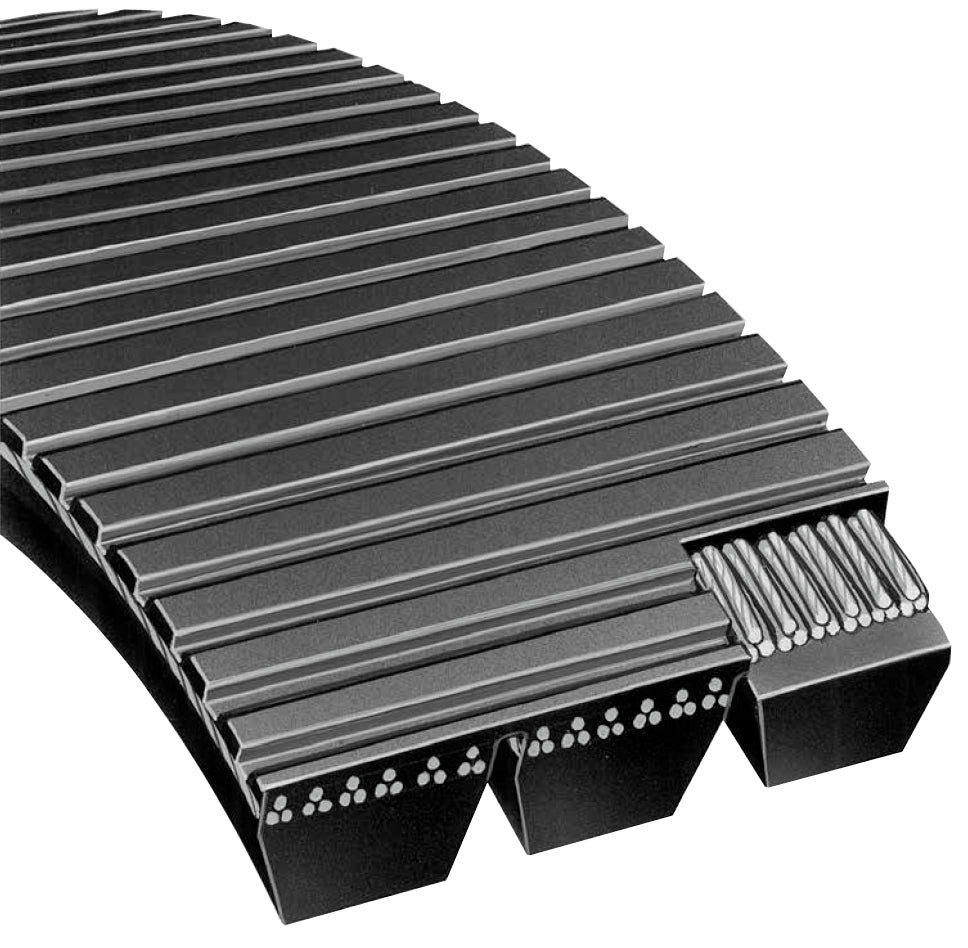

Bando - 4-11MS1950 Ideally suited for short center distances and small diameter pulleys, BanFlex® Combos banded construction minimizes or eliminates the turnover problem normally associated with small cross section belts. The ribbed construction provides superior flexibility while maintaining lateral stability.
- Precision molded, seamless polyurethane ribs provide maximum resistance to oil and traditional lubricants with virtually vibration free operation.
- Treated polyester tensile cords resist fatigue and stretch as well as providing exceptional length stability and drive uniformity.
- Polyamid tie band prevents belt whip under impulse loads.
- Polyurethane ribs on the back of the belt provide rigidity across the width of the belt and dissipate heat, leading to longer belt life.
Additional Information
Price Class621
Weight (lbs)1.262
Multiplier0.3732

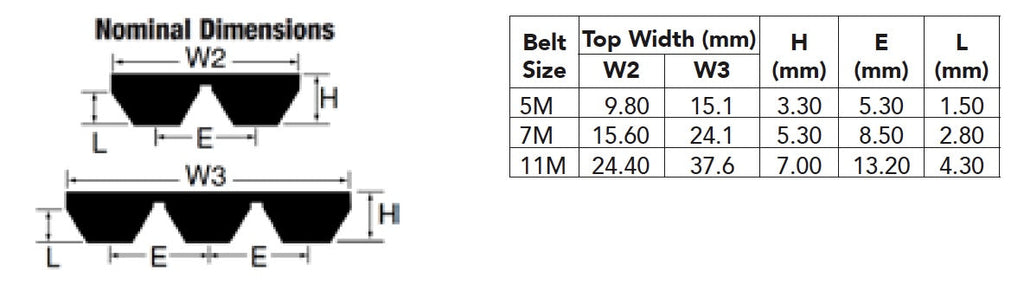

Belt Width (In)0.961
Belt Width (mm)24.4
ColorBlack
Ribs/Teeth/Angle4
Height (In)0.2756
Height (mm)7
Nominal Outside Length (In)76.7717
Nominal Outside Length (mm)1950
Section11M
Number of Ribs4
