Description

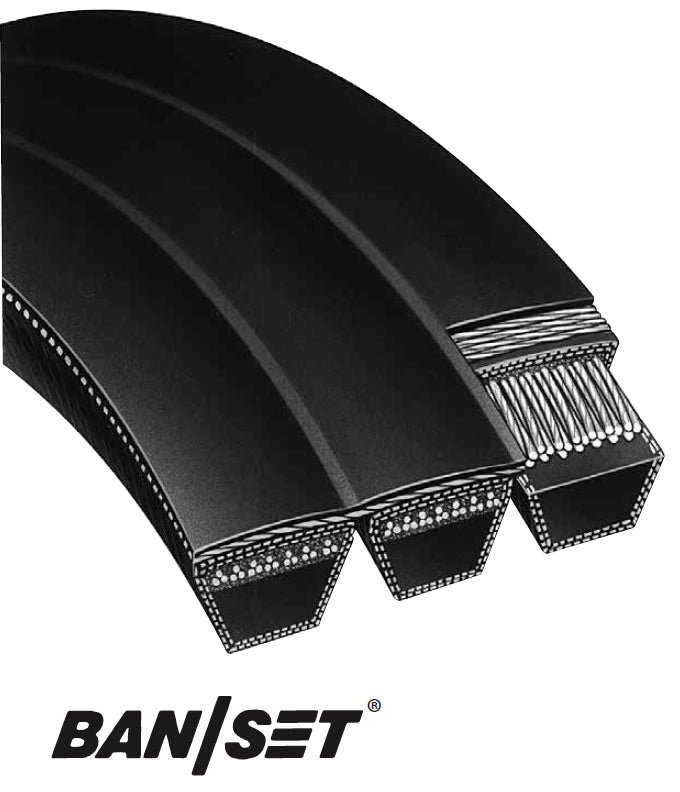

Bando - 3C81 To resolve problem applications where belts are flipping over or jumping out of the sheaves, utilize Bandos series of Combo belts. The tie band assures lateral rigidity and guides the belts into the sheave grooves.
- The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together.
- Combos utilize the premium quality Power King® and Power Ace® belts, with all of their features and benefits.
- Assures equal load distribution in drives where high shock or pulsating loads cause belts to whip, flip over or jump out of the sheave grooves.
- Combos are ideal for use on vertical shaft drives.
- Meets ARPM standards for oil and heat resistance and static conductivity.
Additional Information
Price Class601
Weight (lbs)7.047
Multiplier0.6377
Belt Width (In)3
Belt Width (mm)76.2
ColorBlack
Ribs/Teeth/Angle3
Height (In)0.63
Height (mm)16
Nominal Outside Length (In)85.88
Nominal Outside Length (mm)2181.4
SectionC
Number of Ribs3
