Description

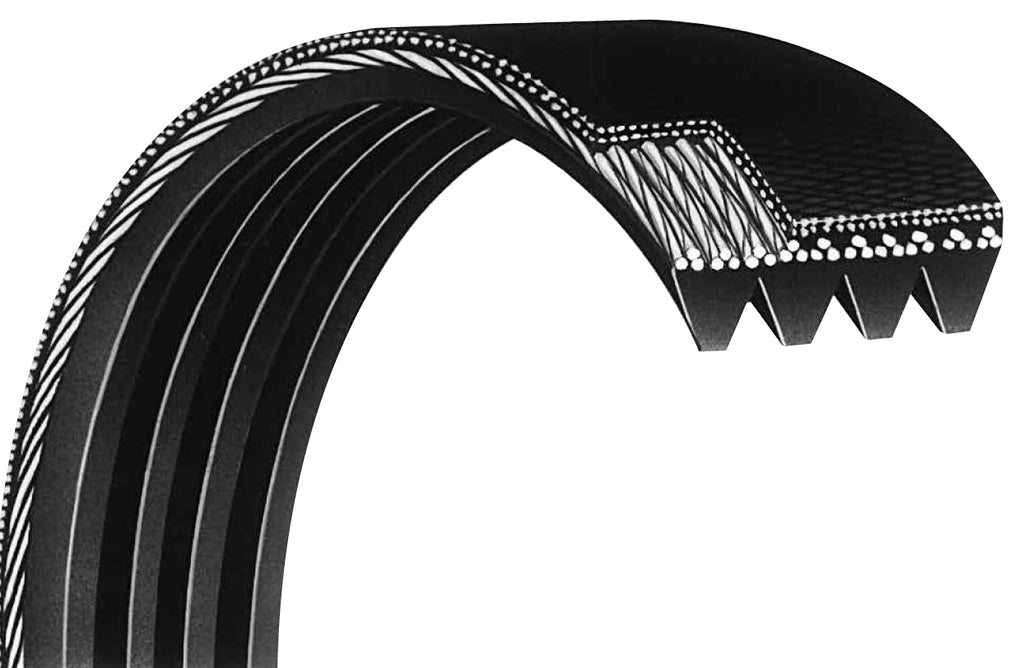

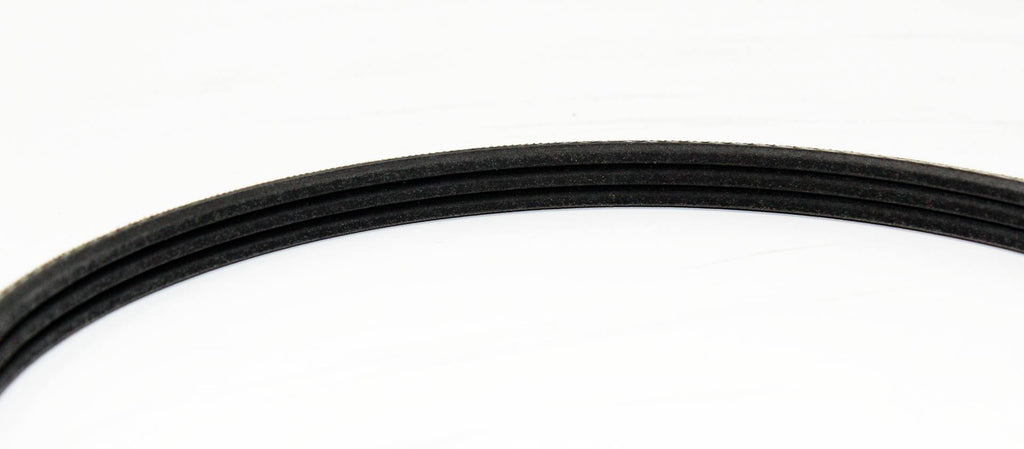

Bando - 280J4 Rib Ace® is an ultra-thin, extremely flexible belt with the versatility to handle heavy, high-speed industrial applications like machine tools, as well as light duty, slower applications such as exercise equipment.
- Able to utilize very small sheaves, allowing for speed ratios up to 4 to 1.
- Smooth, vibration-free performance ideally suited for consumer goods applications like clothes dryers.
- Rib Ace® belts can be used in serpentine drive configurations with small backside idlers, making for a compact design.
- Rib Ace® belts improve performance on 1/8 turn, 1/4 turn, and mule drives
Additional Information
Price Class608
Weight (lbs)0.0491
Multiplier0.3885

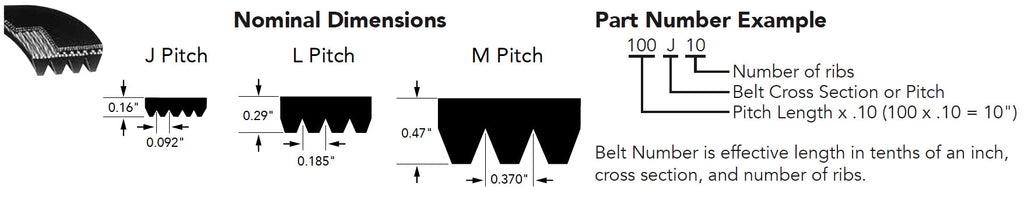

Belt Width (In)0.368
Belt Width (mm)9.3
ColorBlack
Ribs/Teeth/Angle4
Height (In)0.16
Height (mm)4.1
Nominal Outside Length (In)28
Nominal Outside Length (mm)711.2
SectionJ
Number of Ribs4
