Description

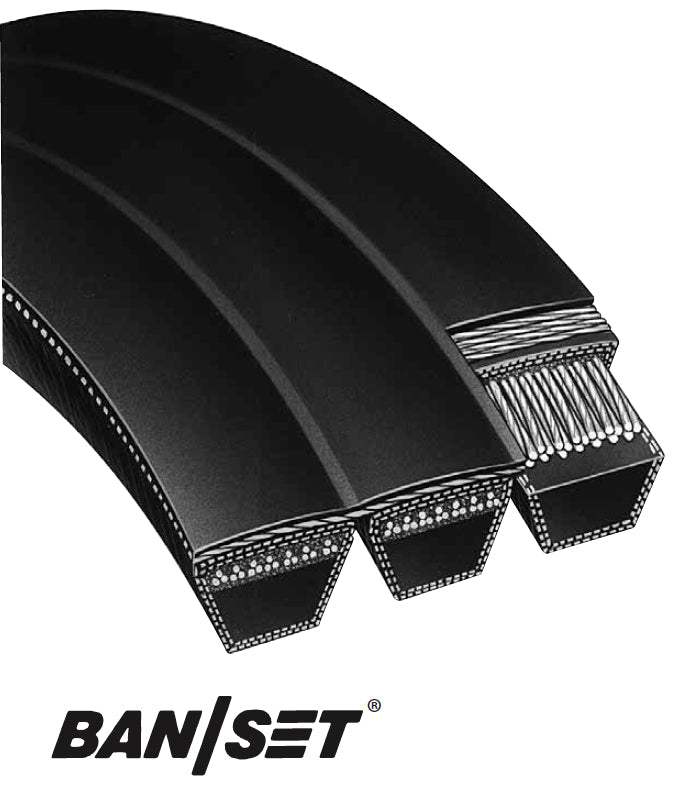

Bando - 2-5V975 To resolve problem applications where belts are flipping over or jumping out of the sheaves, utilize Bandos series of Combo belts. The tie band assures lateral rigidity and guides the belts into the sheave grooves.
- The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together.
- Combos utilize the premium quality Power King® and Power Ace® belts, with all of their features and benefits.
- Assures equal load distribution in drives where high shock or pulsating loads cause belts to whip, flip over, or jump out of the sheave grooves.
- Combos are ideal for use on vertical shaft drives.
- Meets ARPM standards for oil and heat resistance and static conductivity.
Additional Information
Price Class602
Weight (lbs)3.315
Multiplier0.6051

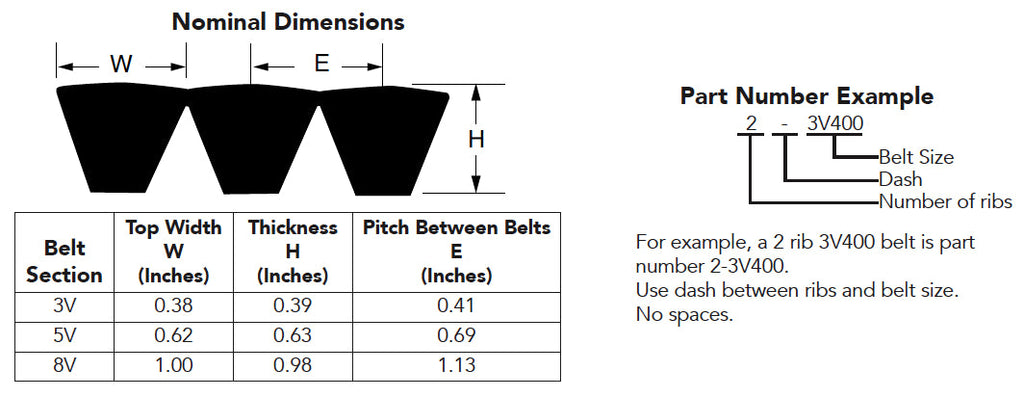

Belt Width (In)1.38
Belt Width (mm)35.1
ColorBlack
Ribs/Teeth/Angle2
Height (In)0.63
Height (mm)16
Nominal Outside Length (In)98.25
Nominal Outside Length (mm)2495.6
Section5V
Number of Ribs2
