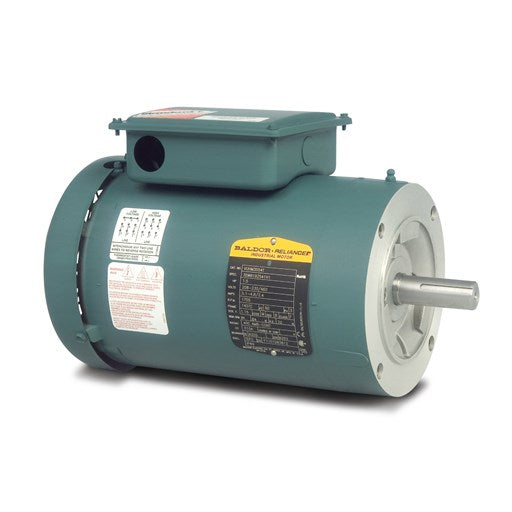

Description
Specs
| Catalog Number | VUHM3538-5 |
|---|---|
| Enclosure | TEFC |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | .500 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 575.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CE CSA UR WEEE |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | .600 A @ 575.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 82.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 0.6 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | K |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 3 @ 18 AWG |
| Motor Type | 3514M |
| Mounting Arrangement | F3 |
| Number of Poles | 4 |
| Overall Length | 13.23 IN |
| Power Factor | 74 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1735 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VUHM3538-5 |
|---|---|
| SPEC. | 35X042M282G1 |
| HP | .5/37KW |
| VOLTS | 575 |
| AMP | .6 |
| RPM | 1735 1/MIN IP44 IC411 15KG |
| FRAME | 56C |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 82.5 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | TEFC |
Performance
| Line-Line Res. @ 25° C | 54.8 Ohms A Ph / 0 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 20° C |
| Temp. Rise @ S.F. Load | 23° C |
| Start Configuration | DOL |
| Break-Down Torque | 6.28 LB-FT |
| Pull-Up Torque | 3.5 LB-FT |
| Locked-Rotor Torque | 4.76 LB-FT |
| Starting Current | 4.45 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 9.0 | 35.0 | 53.0 | 65.0 | 76.0 | 80.0 | 86.0 | 78.0 | ||
| Efficiency | 0.0 | 70.7 | 80.6 | 82.7 | 83.0 | 82.2 | 80.0 | 82.3 | ||
| Speed (RPM) | 1,798 | 1,784 | 1,771 | 1,756 | 1,738 | 1,720 | 1,699 | 1,726 | ||
| Line Amps | 0.38 | 0.40 | 0.45 | 0.52 | 0.61 | 0.71 | 0.82 | 0.68 |
Parts
| 35FH4005A32SP | IEC FH NO GRSR W/3 HOLES - PRIMED |
|---|---|
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
