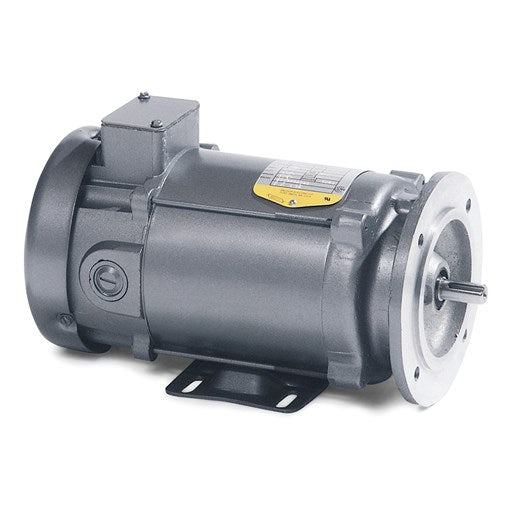

Description
Specs
| Armature Voltage | 180 V |
|---|---|
| Base Speed | 1750 rpm |
| Enclosure | TEFC |
| Frame | D80D |
| Frame Material | Steel |
| Output Power | 0.750 HP |
| XP Class and Group | None |
| Agency Approvals | CE CSA UR WEEE |
| Ambient Temperature | 40 °C |
| Armature Current | 3.7 a |
| Armature Inertia | 10.926 lb-ft2 |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Feedback Device | NO FEEDBACK |
| Frame Prefix | D |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Lifting Lugs | No Lifting Lugs |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 2 @ 14 AWG |
| Mounting Arrangement | B35 |
| Overall Length | 14.35 IN |
| Product Family | BISSIC |
| Pulley End Bearing Type | Sealed Bearing |
| Service Factor | 1.00 |
| Shaft Diameter | 0.748 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Motor Standards | IEC |
| XP Division | Not Applicable |
Drawings
Nameplate
| CAT.NO. | VP3436D |
|---|---|
| SPEC. | 34-6483-3946 |
| KW/HP | .57/.75 TE |
| RPM | 1750 1/MIN KG19 IC411 TE |
| IEC FRAME | D80D |
| ARM V | 180 |
| INSUL | F |
| DUTY | CONT |
| BRG/DE | 6206 |
| BRUSHES | 2/BP5000AW14 |
| BLANK | IEC60034-1;-5 |
Performance
| Rated Load | Load Point | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
|---|---|---|---|---|---|---|---|---|---|
| Armature Amps | 0.16 | 1.36 | 2.56 | 3.76 | 5.66 | 6.72 | 8.16 | ||
| RPM | 1985 | 1934 | 1883 | 1832 | 1750 | 1705 | 1644 | ||
| Torque | 0 | 0.75 | 1.5 | 2.25 | 3.44 | 4.1 | 5 |
