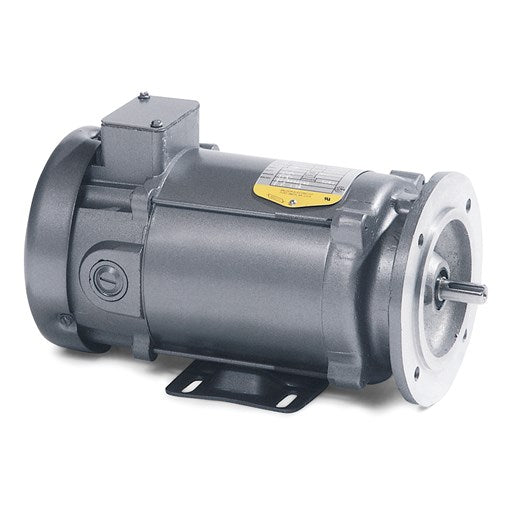

Description
Specs
| Armature Voltage | 180 V |
|---|---|
| Base Speed | 1750 rpm |
| Enclosure | TENV |
| Frame | D71D |
| Frame Material | Steel |
| Output Power | 0.330 HP |
| Agency Approvals | CE CSA UR WEEE |
| Ambient Temperature | 40 °C |
| Armature Current | 1.6 a |
| Armature Inertia | 6.318 lb-ft2 |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Feedback Device | NO FEEDBACK |
| Frame Prefix | D |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Lifting Lugs | No Lifting Lugs |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 2 @ 18 AWG |
| Mounting Arrangement | B35 |
| Overall Length | 12.54 IN |
| Product Family | General Purpose |
| Pulley End Bearing Type | Sealed Bearing |
| Service Factor | 1.00 |
| Shaft Diameter | 0.552 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Motor Standards | IEC |
Drawings
Nameplate
| CAT.NO. | VP3316D |
|---|---|
| SPEC. | 33-2370Z131 |
| KW/HP | .25/.33 TE |
| RPM | 1750 1/MIN TE |
| IEC FRAME | D71D |
| ARM V | 180 |
| INSUL | F |
| DUTY | CONT |
| BRG/DE | 6203 |
| BRUSHES | 2/BP5011CV01 |
| BLANK | IEC60034-1;-5 IC410 KG12 |
| APRV-CE | Y |
Performance
| Armature Resistance | 4.331 ohms |
|---|---|
| Armature Inductance | 39.666 mH |
| Rated Load | Load Point | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
|---|---|---|---|---|---|---|---|---|---|
| Armature Amps | 0.18 | 0.89 | 1.16 | 1.53 | 1.88 | 2.22 | 2.87 | ||
| RPM | 1727 | 1679 | 1662 | 1633 | 1620 | 1595 | 1556 | ||
| Torque | 0 | 0.516 | 0.752 | 1.01 | 1.268 | 1.525 | 2.02 |
Parts
| BRUSH SPRING FOR DC MOTORS | |
| 33CB4501A01SP | BRUSH INSPECTION COVER |
| 34CB4500SP | CONDUIT BOX LID, STAMPED |
| 33RK5004SP | ROCKERARM |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
