Description
Specs

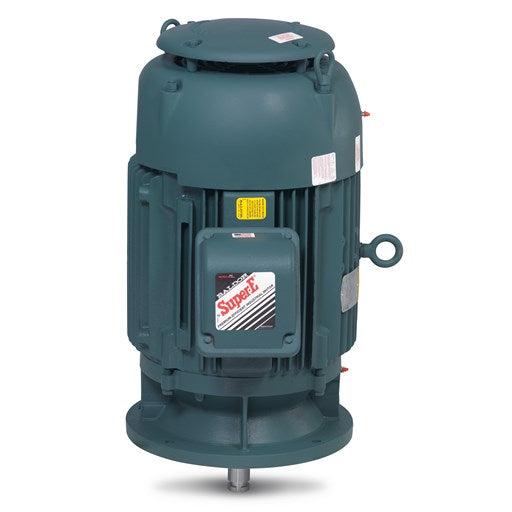

| Catalog Number | VLECP3769T |
|---|---|
| Enclosure | TEFC |
| Frame | 213LP |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 7.500 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| XP Class and Group | CLI GP A,B,C,D |
| XP Division | Division II |
| Agency Approvals | NEMA PREMIUM NEMA_PREMIUM UR CSA EEV CCSA US |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Constant Torque Speed Range | 6 |
| Current @ Voltage | 8.600 A @ 460.0 V 17.200 A @ 230.0 V |
| Design Code | B |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Modification | 841 |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 8.6 a |
| Front Face Code | Drip Cover Mounting |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | H |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max Speed | 5400 rpm |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 14 AWG |
| Motor Type | 0732M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 22.51 IN |
| Power Factor | 88 |
| Product Family | Super-E Chemical Processing |
| Pulley End Bearing Type | Thrust |
| Pulley Face Code | P-Base |
| Pulley Shaft Indicator | P-Base Groove & Key |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 1.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3510 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
| XP Temp Code | T3C |
Drawings
Nameplate
| CAT.NO. | VLECP3769T |
|---|---|
| SPEC. | 07H347Y010G1 |
| HP | 7.5 TE |
| VOLTS | 230/460 |
| AMP | 17.2/8.6 |
| RPM | 3510 |
| FRAME | 213LP |
| SER.F. | 1.15 |
| RATING | 40C AMB-CONT |
| DE | QJ211 |
| NEMA-NOM-EFF | 91 |
| G.MIN.EFF | 89.5 |
| T. CODE | T3C |
| D.E. BRG. | 55BZ02X00X |
| O.D.E. BRG. | 35BC03X30X |
| GREASE | POLYREX EM |
| RPM MAX | 5400 |
| INV.TYPE | PWM |
| T= | 160 |
| C HP FR | 60 |
| CT HZ FROM | 6 |
| VT HZ FROM | 3 |
| HTR-VOLTS | N/A |
| HTR-WATTS | N/A |
Performance
| Locked-Rotor Torque | 21.3 LB-FT |
|---|---|
| Starting Current | 61.4 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 9.0 | 57.0 | 78.0 | 85.0 | 89.0 | 89.0 | 90.0 | 89.0 | ||
| Efficiency | 0.0 | 86.8 | 91.2 | 92.2 | 91.8 | 90.9 | 89.8 | 91.3 | ||
| Speed (RPM) | 3,600 | 3,579 | 3,558 | 3,536 | 3,510 | 3,484 | 3,454 | 3,494 | ||
| Line Amps | 2.75 | 3.42 | 4.86 | 6.63 | 8.52 | 10.70 | 13.00 | 9.84 |
Parts
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
|---|
