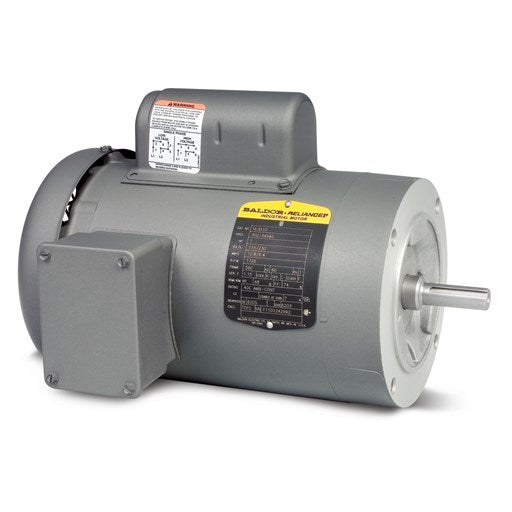

Description
Specs
| Enclosure | TEFC |
|---|---|
| Frame | 184C |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Induction Run |
| Output @ Frequency | 2.000 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 115.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 11.700 A @ 208.0 V 23.000 A @ 115.0 V 11.500 A @ 230.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 75.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 11.5 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | H |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 4 @ 14 AWG, A PH |
| Motor Type | 3628L |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 15.68 IN |
| Power Factor | 74 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1725 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL3605 |
|---|---|
| SPEC. | 36C13W223 |
| HP | 2 |
| VOLTS | 115/230 |
| AMP | 23/11.5 |
| RPM | 1725 |
| FRAME | 184C |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 75.5 |
| RATING | 40C AMB-CONT |
| DE | 6206 |
| ENCL | TEFC |
Performance
| No-Load Current | 0 A |
|---|---|
| Line-Line Res. @ 25° C | 0.239 Ohms A Ph / 1.14 Ohms B Ph |
| Temp. Rise @ Rated Load | 75° C |
| Temp. Rise @ S.F. Load | 88° C |
| Start Configuration | DOL |
| Break-Down Torque | 17.4 LB-FT |
| Pull-Up Torque | 11.4 LB-FT |
| Locked-Rotor Torque | 14.4 LB-FT |
| Starting Current | 142 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 14.0 | 36.0 | 54.0 | 67.0 | 74.0 | 79.0 | 82.0 | 77.0 | ||
| Efficiency | 0.0 | 61.0 | 73.0 | 75.0 | 75.5 | 74.0 | 73.0 | 74.6 | ||
| Speed (RPM) | 1,798 | 1,788 | 1,775 | 1,760 | 1,745 | 1,730 | 1,712 | 1,736 | ||
| Line Amps | 14.20 | 15.00 | 16.80 | 19.60 | 23.00 | 27.40 | 31.60 | 25.60 |
Parts
| 35CB4802A02SP | CAPACITOR COVER, STAMPED X |
|---|---|
| 36FN3000A01SP | EXFN, PLASTIC, 7.00 OD, .912 ID |
| EC1850A06SP | ELEC CAP 115V 2.0 X 4.3 X |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
