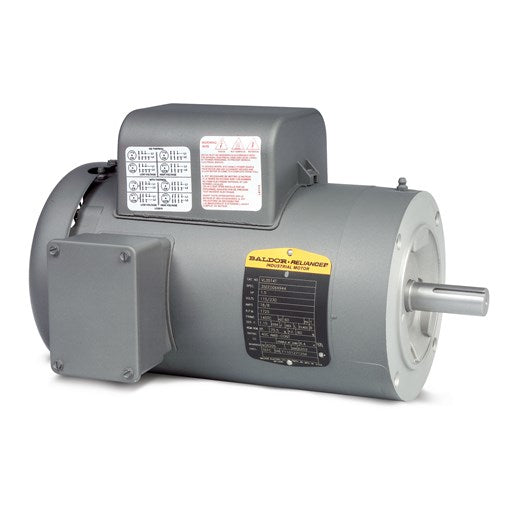

Description
Specs
| Catalog Number | VL3515-50 |
|---|---|
| Enclosure | TEFC |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | 2.000 HP @ 50 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 3000 RPM @ 50 HZ |
| Voltage @ Frequency | 110.0 V @ 50 HZ 220.0 V @ 50 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CE CSA UR WEEE |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 9.700 A @ 220.0 V 19.400 A @ 110.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 77.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 9.7 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | G |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 4 @ 16 AWG, A PH |
| Motor Type | 3535LC |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 14.12 IN |
| Power Factor | 96 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 2850 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL3515-50 |
|---|---|
| SPEC. | 35E22Y963 |
| HP | 2/1.5KW IEC60034-30 |
| VOLTS | 110/220 |
| AMP | 19.4/9.7 |
| RPM | 2850 1/MIN IC411 24KG |
| FRAME | 56C |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 77 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | TEFC |
Performance
| Break-Down Torque | 8.7 LB-FT |
|---|---|
| Pull-Up Torque | 5.2 LB-FT |
| Locked-Rotor Torque | 7 LB-FT |
| Starting Current | 120 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 45.0 | 78.0 | 89.0 | 93.0 | 94.0 | 95.0 | 95.0 | 0.0 | ||
| Efficiency | 0.0 | 60.3 | 73.4 | 77.8 | 78.8 | 78.0 | 75.9 | 0.0 | ||
| Speed (RPM) | 2,993 | 2,972 | 2,948 | 2,922 | 2,893 | 2,859 | 2,817 | 0 | ||
| Line Amps | 5.00 | 7.20 | 10.40 | 14.10 | 18.20 | 22.90 | 28.20 | 0.00 |
Parts
| GASKET-CONDUIT BOX, .06 THICK #SV-330 LE | |
| 35FH4005A32SP | IEC FH NO GRSR W/3 HOLES - PRIMED |
| 34FN3002A01SP | EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
