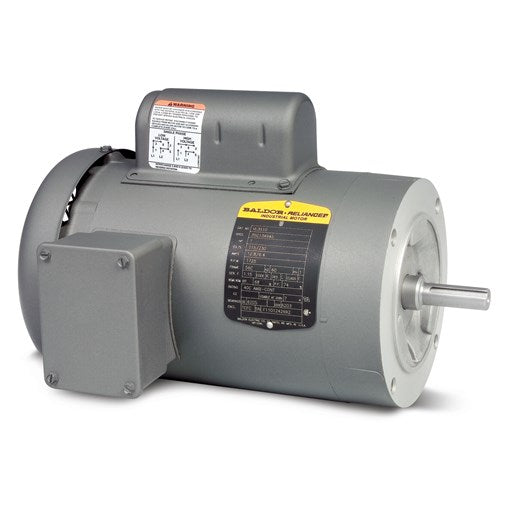

Description
Specs
| Catalog Number | VL3510T |
|---|---|
| Enclosure | TEFC |
| Frame | 143TC |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Induction Run |
| Output @ Frequency | 1.000 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 115.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 6.400 A @ 230.0 V 7.000 A @ 208.0 V 12.800 A @ 115.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 68.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 6.4 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | K |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3524L |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 13.29 IN |
| Power Factor | 74 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1725 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL3510T |
|---|---|
| SPEC. | 35CC003X945 |
| HP | 1 |
| VOLTS | 115/230 |
| AMP | 12.8/6.4 |
| RPM | 1725 |
| FRAME | 143TC |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 68 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | TEFC |
Performance
| Temp. Rise @ S.F. Load | 96° C |
|---|---|
| Start Configuration | DOL |
| Break-Down Torque | 6.9 LB-FT |
| Pull-Up Torque | 5.9 LB-FT |
| Locked-Rotor Torque | 10 LB-FT |
| Starting Current | 78 A |
| Full Load Torque | 0 LB-FT |
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 0.65 Ohms A Ph / 1.8 Ohms B Ph |
| Temp. Rise @ Rated Load | 79° C |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 17.0 | 39.0 | 53.0 | 67.0 | 75.0 | 81.0 | 84.0 | 79.0 | |||||||||||
| Efficiency | 0.0 | 52.9 | 67.6 | 70.0 | 70.3 | 68.6 | 64.9 | 69.3 | |||||||||||
| Speed (RPM) | 1,798 | 1,781 | 1,765 | 1,746 | 1,726 | 1,701 | 1,666 | 1,711 | |||||||||||
| Line Amps | 8.20 | 8.60 | 9.40 | 10.60 | 12.40 | 14.80 | 17.80 | 13.80 |
Parts
| ELEC CAP, 645-774 MFD, 125V, 2.06D X 4. | |
| 36GS1000SP | GASKET-CONDUIT BOX, .06 THICK #SV-330 LE |
| 35CB4802A02SP | CAPACITOR COVER, STAMPED X |
| 35FH4005A84SP | IEC FH W/GRSR, NO DIMPLES PRIMED |
| 35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
