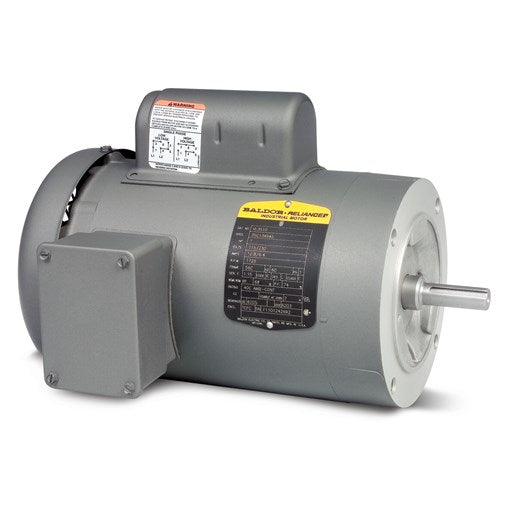

Description
Specs
| Catalog Number | VL3510-50 |
|---|---|
| Enclosure | TEFC |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50.00 Hz |
| Motor Letter Type | Cap Start, Induction Run |
| Output @ Frequency | 1.000 HP @ 50 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1500 RPM @ 50 HZ |
| Voltage @ Frequency | 110.0 V @ 50 HZ 220.0 V @ 50 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CE CSA UR WEEE |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 6.500 A @ 220.0 V 13.000 A @ 110.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 64.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 6.5 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | J |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3524L |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 13.23 IN |
| Power Factor | 82 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1410 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL3510-50 |
|---|---|
| SPEC. | 35C13YG392 |
| HP | 1/.75KW |
| VOLTS | 110/220 |
| AMP | 13/6.5 |
| RPM | 1410 1/MN |
| FRAME | 56C |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 64 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | TEFC |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 0.757 Ohms A Ph / 1.89 Ohms B Ph |
| Temp. Rise @ Rated Load | 131° C |
| Temp. Rise @ S.F. Load | 154° C |
| Start Configuration | DOL |
| Break-Down Torque | 7.72 LB-FT |
| Pull-Up Torque | 6.05 LB-FT |
| Locked-Rotor Torque | 9.35 LB-FT |
| Starting Current | 66.59 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 19.0 | 44.0 | 62.0 | 74.0 | 82.0 | 86.0 | 84.0 | 84.0 | ||
| Efficiency | 0.0 | 53.1 | 63.9 | 66.3 | 64.6 | 59.2 | 0.9 | 61.4 | ||
| Speed (RPM) | 1,497 | 1,481 | 1,462 | 1,439 | 1,409 | 1,363 | 52 | 1,381 | ||
| Line Amps | 6.97 | 7.45 | 8.61 | 10.42 | 12.92 | 16.54 | 41.99 | 15.10 |
Parts
| 36GS1000SP | GASKET-CONDUIT BOX, .06 THICK #SV-330 LE |
|---|---|
| 35CB4802A02SP | CAPACITOR COVER, STAMPED X |
| 35FH4005A32SP | IEC FH NO GRSR W/3 HOLES - PRIMED |
| 35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
