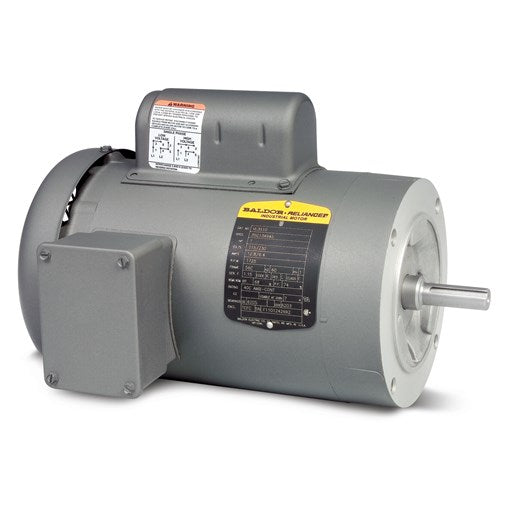

Description
Specs
| Catalog Number | VL3507-50 |
|---|---|
| Enclosure | TEFC |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50.00 Hz |
| Motor Letter Type | Cap Start, Induction Run |
| Output @ Frequency | .750 HP @ 50 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1500 RPM @ 50 HZ |
| Voltage @ Frequency | 110.0 V @ 50 HZ 220.0 V @ 50 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CE CSA UR WEEE |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 9.600 A @ 110.0 V 4.800 A @ 220.0 V |
| Design Code | N |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 66.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 4.8 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | K |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3524L |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 13.25 IN |
| Power Factor | 79 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1415 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL3507-50 |
|---|---|
| SPEC. | 35C13G388 |
| HP | .75/.56KW IEC60034-30 |
| VOLTS | 110/220 |
| AMP | 9.6/4.8 PF-76 |
| RPM | 1415 1/MIN IP54 IC411 18KG |
| FRAME | 56C |
| SER.F. | 1.25 |
| NEMA-NOM-EFF | 66 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | TEFC |
Performance
| Rated Load | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Line Amps | 4.80 | 5.17 | 6.04 | 7.39 | 9.22 | 11.82 | 29.86 | 11.80 |
Parts
| CAPACITOR COVER, STAMPED X | |
| 35FH4005A32SP | IEC FH NO GRSR W/3 HOLES - PRIMED |
| 35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
