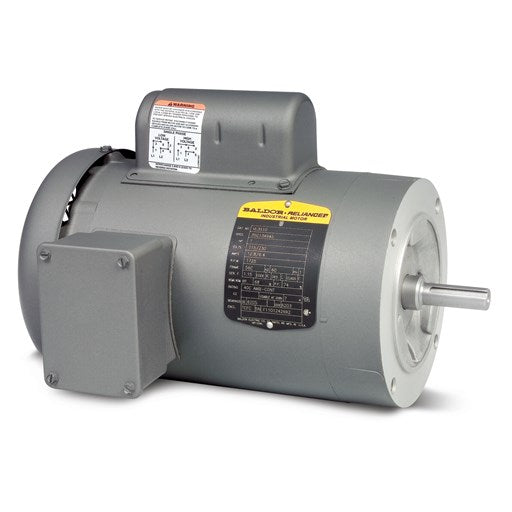

Description
Specs
| KVA Code | K |
|---|---|
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3424L |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 11.97 IN |
| Power Factor | 74 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL3506 |
|---|---|
| SPEC. | 34K43-3405 |
| HP | .75 |
| VOLTS | 115/230 |
| AMP | 9.6/4.8 |
| RPM | 3450 |
| FRAME | 56C |
| SER.F. | 1.25 |
| NEMA-NOM-EFF | 66 |
| RATING | 40C AMB-CONT |
| DE | 6203 |
| ENCL | TEFC |
Performance
| No-Load Current | 0 A |
|---|---|
| Line-Line Res. @ 25° C | 2.5 Ohms A Ph / 2.5 Ohms B Ph |
| Temp. Rise @ Rated Load | 78° C |
| Temp. Rise @ S.F. Load | 92° C |
| Start Configuration | DOL |
| Break-Down Torque | 3.5 LB-FT |
| Pull-Up Torque | 2.7 LB-FT |
| Locked-Rotor Torque | 3.7 LB-FT |
| Starting Current | 28 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 20.0 | 36.0 | 51.0 | 62.0 | 70.0 | 76.0 | 81.0 | 0.0 | ||
| Efficiency | 0.0 | 47.2 | 61.1 | 66.5 | 68.7 | 68.7 | 66.7 | 0.0 | ||
| Speed (RPM) | 3,595 | 3,561 | 3,534 | 3,500 | 3,464 | 3,421 | 3,365 | 0 | ||
| Line Amps | 3.50 | 3.60 | 3.90 | 4.40 | 5.00 | 5.70 | 6.70 | 5.70 |
Parts
| FR ENDPLATE, MACH | |
| 34EP3300A24SP | PU ENDPLATE, MACH |
| 34FN3002A01SP | EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ |
| 34FH4002A01SP | IEC FH NO GREASER PRIMED |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
