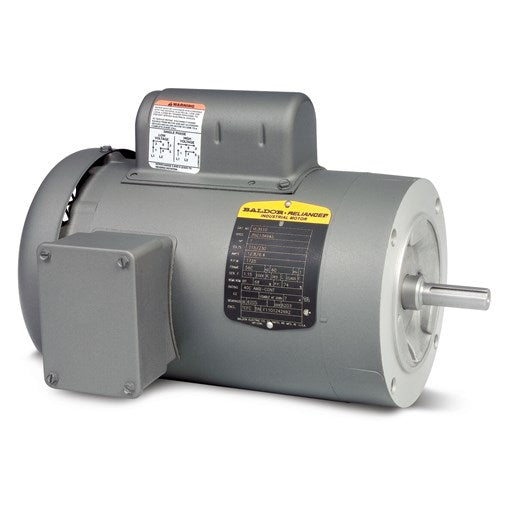

Description
Specs
| Catalog Number | VL3505 |
|---|---|
| Enclosure | TEFC |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Induction Run |
| Output @ Frequency | .500 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 115.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 4.500 A @ 208.0 V 7.800 A @ 115.0 V 3.900 A @ 230.0 V |
| Design Code | N |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 62.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 3.9 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3528L |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 13.25 IN |
| Power Factor | 65 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1140 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL3505 |
|---|---|
| SPEC. | 35C013N457G1 |
| HP | .5 |
| VOLTS | 115/230 |
| AMP | 7.8/3.9 |
| RPM | 1140 |
| FRAME | 56C |
| SER.F. | 1.25 |
| NEMA-NOM-EFF | 62.5 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | TEFC |
Performance
| Pull-Up Torque | 4.01 LB-FT |
|---|---|
| Locked-Rotor Torque | 6.91 LB-FT |
| Starting Current | 43.2 A |
| Full Load Torque | 0 LB-FT |
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 1.23 Ohms A Ph / 2.86 Ohms B Ph |
| Temp. Rise @ Rated Load | 65° C |
| Temp. Rise @ S.F. Load | 79° C |
| Start Configuration | DOL |
| Break-Down Torque | 4.88 LB-FT |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 19.0 | 32.0 | 46.0 | 56.0 | 65.0 | 71.0 | 76.0 | 80.0 | |||||||||||
| Efficiency | 0.0 | 39.7 | 54.6 | 60.9 | 62.8 | 61.9 | 58.2 | 82.4 | |||||||||||
| Speed (RPM) | 1,199 | 1,188 | 1,177 | 1,166 | 1,152 | 1,135 | 1,108 | 1,442 | |||||||||||
| Line Amps | 5.68 | 5.80 | 6.24 | 6.88 | 7.82 | 9.08 | 10.90 | 2.95 |
