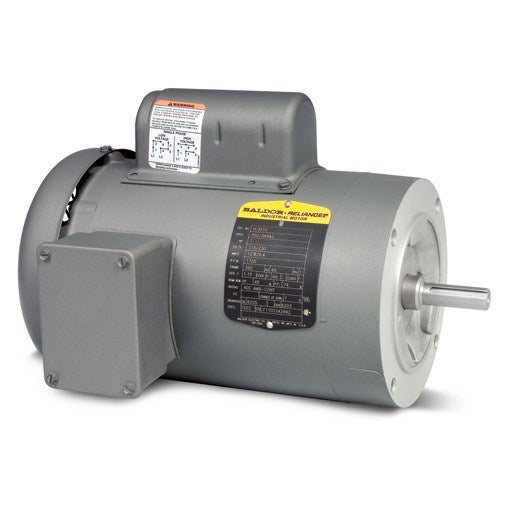

Description
Specs
| Catalog Number | VL3501-50 |
|---|---|
| Enclosure | TEFC |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50.00 Hz |
| Motor Letter Type | Cap Start, Induction Run |
| Output @ Frequency | .330 HP @ 50 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1500 RPM @ 50 HZ |
| Voltage @ Frequency | 110.0 V @ 50 HZ 220.0 V @ 50 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CE CSA UR WEEE |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 6.400 A @ 110.0 V 3.200 A @ 220.0 V |
| Design Code | N |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 59.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 3.2 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3418L |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 11.35 IN |
| Power Factor | 60 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.35 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1425 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL3501-50 |
|---|---|
| SPEC. | 34C63W120 |
| HP | .33/KW .25 |
| VOLTS | 110/220 |
| AMP | 6.4/3.2 |
| RPM | 1425 1/MIN IP54 IC411 KG10 |
| FRAME | 56C |
| SER.F. | 1.35 |
| NEMA-NOM-EFF | 59 |
| RATING | 40C AMB-S1 CONT |
| DE | 6203 |
| ENCL | TEFC |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 6.14 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 63° C |
| Temp. Rise @ S.F. Load | 85° C |
| Start Configuration | DOL |
| Break-Down Torque | 3.4 LB-FT |
| Pull-Up Torque | 3 LB-FT |
| Locked-Rotor Torque | 4.1 LB-FT |
| Starting Current | 14.7 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 25.0 | 37.0 | 47.0 | 55.0 | 61.0 | 68.0 | 75.0 | 72.0 | ||
| Efficiency | 0.0 | 30.0 | 45.9 | 58.3 | 62.3 | 61.7 | 61.5 | 61.6 | ||
| Speed (RPM) | 1,495 | 1,486 | 1,476 | 1,466 | 1,454 | 1,441 | 1,427 | 1,436 | ||
| Line Amps | 2.77 | 2.79 | 2.80 | 3.00 | 3.20 | 3.40 | 3.80 | 3.60 |
Parts
| FR ENDPLATE, MACH | |
| 34CB4800SP | CAPACITOR COVER, STAMPED PRIMED |
| 34GS3000SP | GASKET, CAPACITOR BOX |
| 34FN3002A01SP | EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ |
| 34FH4002A01SP | IEC FH NO GREASER PRIMED |
| 34EP3300A24SP | PU ENDPLATE, MACH |
| EC1189A02SP | 61B2D120189NNBA ELEC CAP, 189-227MFD, 12 |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
