Description
Specs

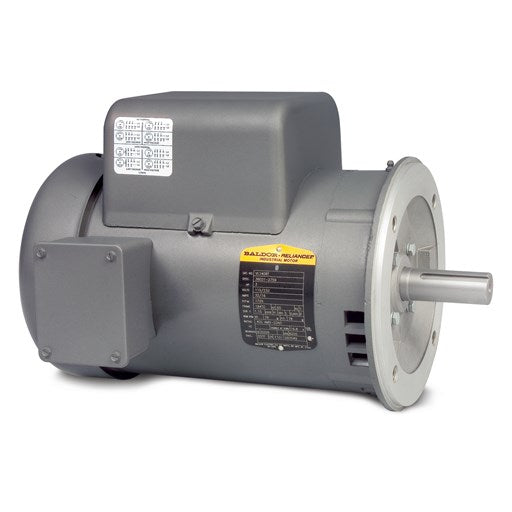

| Catalog Number | VL1406T |
|---|---|
| Enclosure | ODTF |
| Frame | 182TC |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | 3.000 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 115.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 14.700 A @ 208.0 V 27.200 A @ 115.0 V 13.600 A @ 230.0 V |
| Design Code | L |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 75.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 13.6 a |
| Front Face Code | Drip Cover Mounting |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | B |
| Inverter Code | Not Inverter |
| KVA Code | H |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 4 @ 14 AWG, A PH |
| Motor Type | 3532LC |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 15.18 IN |
| Power Factor | 92 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 1.125 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL1406T |
|---|---|
| SPEC. | 35U226Z508 |
| HP | 3 |
| VOLTS | 115/230 |
| AMP | 27.2/13.6 |
| RPM | 3450 |
| FRAME | 182TC |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 75.5 |
| RATING | 40C AMB-CONT |
| DE | 6206 |
| ENCL | ODTF |
Performance
| Line-Line Res. @ 25° C | 0.812 Ohms A Ph / 1.04 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 40° C |
| Temp. Rise @ S.F. Load | 51° C |
| Start Configuration | DOL |
| Break-Down Torque | 11 LB-FT |
| Pull-Up Torque | 7.2 LB-FT |
| Locked-Rotor Torque | 10 LB-FT |
| Starting Current | 85.8 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 30.0 | 67.0 | 83.0 | 89.0 | 92.0 | 93.0 | 93.0 | 93.0 | ||
| Efficiency | 0.0 | 62.1 | 74.3 | 77.4 | 76.6 | 73.4 | 68.4 | 74.7 | ||
| Speed (RPM) | 3,599 | 3,564 | 3,534 | 3,500 | 3,458 | 3,405 | 3,324 | 3,426 | ||
| Line Amps | 4.42 | 5.47 | 7.62 | 10.30 | 13.60 | 17.70 | 23.00 | 16.10 |
Parts
| 7YL OIL CAP 40MFD/370V | |
| EC1815A06SP | ELEC CAP 115V 2.0 X 4.3 |
| 35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID |
