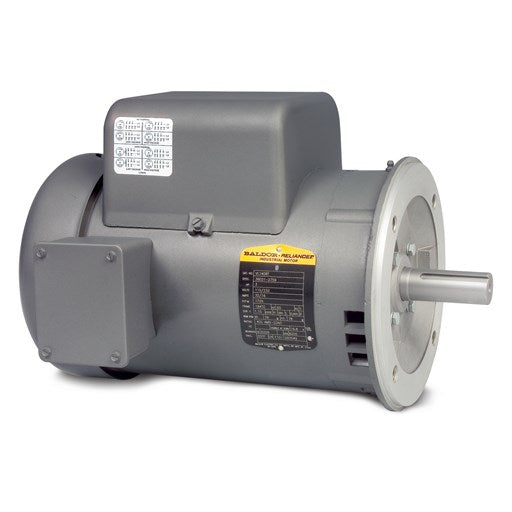

Description
Specs
| Catalog Number | VL1322T |
|---|---|
| Enclosure | OPEN |
| Frame | 145TC |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | 2.000 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 208.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | UR CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 10.200 A @ 230.0 V 10.300 A @ 208.0 V 20.400 A @ 115.0 V |
| Design Code | L |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 75.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 10.2 a |
| Front Face Code | Drip Cover Mounting |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | J |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 4 @ 14 AWG, A PH |
| Motor Type | 3532LC |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 14.16 IN |
| Power Factor | 85 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1725 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| SPEC. | 35EE018X966 |
|---|---|
| HP | 2 |
| VOLTS | 115/208-230 |
| AMP | 20.4/10.3-10.2 |
| RPM | 1725 |
| FRAME | 145TC |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 75.5 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | OPEN |
Performance
| Rated Load | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 72.7 | 74.9 | ||||||||||||||||||
| Speed (RPM) | 1,798 | 1,780 | 1,762 | 1,741 | 1,715 | 1,682 | 1,655 | 1,695 | |||||||||||
| Line Amps | 4.28 | 4.71 | 5.95 | 7.71 | 10.00 | 12.76 | 15.20 | 11.70 | |||||||||||
| Power Factor | 21.0 | 60.0 | 79.0 | 89.0 | 92.0 | 94.0 | 99.0 | 93.0 | |||||||||||
| Efficiency | 0.0 | 65.0 | 77.5 | 78.2 | 76.6 | 73.0 | 69.0 | 74.4 |
Parts
| 35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID |
|---|---|
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
