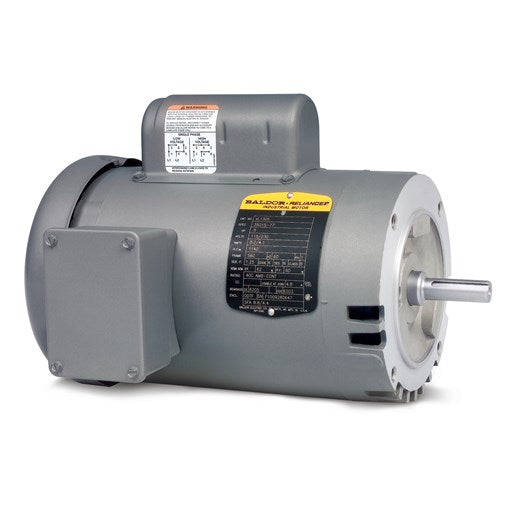

Description
Specs
| Catalog Number | VL1321T |
|---|---|
| Enclosure | OPEN |
| Frame | 145TC |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Induction Run |
| Output @ Frequency | 1.500 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 115.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 7.800 A @ 230.0 V 8.300 A @ 208.0 V 15.500 A @ 115.0 V |
| Design Code | L |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 75.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 7.8 a |
| Front Face Code | Drip Cover Mounting |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | M |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 4 @ 14 AWG, A PH |
| Motor Type | 3536L |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 15.54 IN |
| Power Factor | 80 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1730 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VL1321T |
|---|---|
| SPEC. | 35DD00G406 |
| HP | 1.5 |
| VOLTS | 115/230 |
| AMP | 15.5/7.8 |
| RPM | 1730 |
| FRAME | 145TC |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 75.5 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | OPEN |
Performance
| Line-Line Res. @ 25° C | 0.446 Ohms A Ph / 1.18 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 82° C |
| Temp. Rise @ S.F. Load | 101° C |
| Start Configuration | DOL |
| Break-Down Torque | 9.82 LB-FT |
| Pull-Up Torque | 9.83 LB-FT |
| Locked-Rotor Torque | 14.77 LB-FT |
| Starting Current | 100 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 13.0 | 42.0 | 62.0 | 73.0 | 81.0 | 83.0 | 85.0 | 82.0 | ||
| Efficiency | 0.0 | 66.2 | 75.9 | 78.2 | 77.1 | 73.2 | 67.7 | 74.8 | ||
| Speed (RPM) | 1,799 | 1,782 | 1,767 | 1,748 | 1,728 | 1,697 | 1,658 | 1,709 | ||
| Line Amps | 10.35 | 8.89 | 10.27 | 12.73 | 15.64 | 19.99 | 25.47 | 18.20 |
Parts
| EC1645A06SP | ELEC CAP, 645-774 MFD, 125V, 2.06D X 4. |
|---|---|
| 35CB4802A02SP | CAPACITOR COVER, STAMPED X |
| 35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
