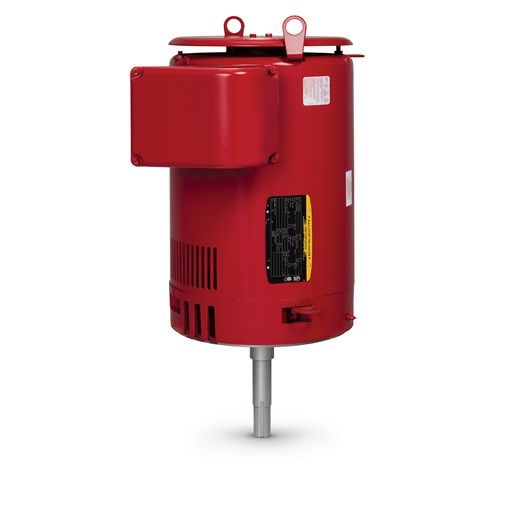

| Catalog Number | VJPFPM2549T |
|---|---|
| Enclosure | OPSB |
| Frame | 364JP |
| Frame Material | Steel |
| Frequency | 50.00 Hz 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 60.000 HP @ 50 HZ 75.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 190.0 V @ 50 HZ 460.0 V @ 60 HZ 380.0 V @ 50 HZ |
| Agency Approvals | CSA EEV CULUS |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 84.000 A @ 460.0 V 82.000 A @ 380.0 V 168.000 A @ 230.0 V 164.000 A @ 190.0 V |
| Design Code | B |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 93.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 82.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | F |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 12 @ 6 AWG |
| Motor Type | 4250M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 32.50 IN |
| Power Factor | 90 |
| Product Family | Fire Pump Motor |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | Included |
| Service Factor | 1.15 |
| Shaft Diameter | 1.577 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 2940 rpm 3535 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Wye Start - Delta Run |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VJPFPM2549T |
|---|---|
| SPEC. | 42E361W976H2 |
| HZ | 60 |
| VOLTS | 230/460 |
| AMPS | 168/84 |
| EFF | 93 |
| RATING | 40C AMB-CONT |
Performance
| Pull-Up Torque | 118 LB-FT |
|---|---|
| Locked-Rotor Torque | 157 LB-FT |
| Starting Current | 498 A |
| Full Load Torque | 0 LB-FT |
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 0.0928 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 40° C |
| Temp. Rise @ S.F. Load | 50° C |
| Start Configuration | DOL |
| Break-Down Torque | 368 LB-FT |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 7.0 | 68.0 | 84.0 | 89.0 | 90.0 | 90.0 | 89.0 | 90.0 | |||||||||||
| Efficiency | 0.0 | 90.6 | 93.4 | 93.6 | 93.3 | 92.1 | 90.2 | 92.6 | |||||||||||
| Speed (RPM) | 2,999 | 2,985 | 2,973 | 2,958 | 2,941 | 2,922 | 2,901 | 2,930 | |||||||||||
| Line Amps | 19.20 | 27.60 | 43.30 | 61.50 | 81.80 | 103.00 | 127.00 | 94.50 |
