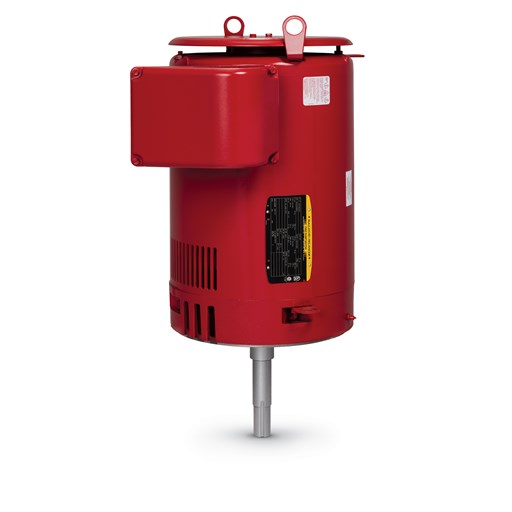

Description
Specs
| Catalog Number | VJPFPM2542T-2/4 |
|---|---|
| Enclosure | OPSB |
| Frame | 324JP |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 50.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 200.0 V @ 60 HZ 400.0 V @ 60 HZ |
| Agency Approvals | UL CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 134.000 A @ 200.0 V 67.000 A @ 400.0 V |
| Design Code | B |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 92.4 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 67.0 a |
| Front Face Code | Drip Cover Mounting |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | F |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 12 @ 8 AWG |
| Motor Type | 4044M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 31.13 IN |
| Power Factor | 87 |
| Product Family | Fire Pump Motor |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | Included |
| Service Factor | 1.15 |
| Shaft Diameter | 1.750 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3520 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Wye Start - Delta Run |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VJPFPM2542T-2/4 |
|---|---|
| SPEC. | 40L037X328H2 |
| HZ | 60 |
| VOLTS | 200/400 |
| AMPS | 134/67 |
| EFF | 92.4 |
| RATING | 40C AMB-CONT |
Performance
| Line-Line Res. @ 25° C | 0.127 Ohms A Ph / 0 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 44° C |
| Temp. Rise @ S.F. Load | 53° C |
| Start Configuration | DOL |
| Break-Down Torque | 235 LB-FT |
| Pull-Up Torque | 86.4 LB-FT |
| Locked-Rotor Torque | 126 LB-FT |
| Starting Current | 403 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 8.0 | 62.0 | 80.0 | 86.0 | 87.0 | 88.0 | 89.0 | 88.0 | ||
| Efficiency | 0.0 | 89.4 | 92.6 | 93.2 | 92.4 | 91.8 | 90.0 | 92.0 | ||
| Speed (RPM) | 3,599 | 3,583 | 3,565 | 3,547 | 3,527 | 3,505 | 3,478 | 3,514 | ||
| Line Amps | 18.30 | 24.90 | 36.70 | 50.80 | 66.50 | 83.40 | 101.00 | 76.60 |
Parts
| 10CB3500SP | CONDUIT BOX LID, CAST |
|---|---|
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
