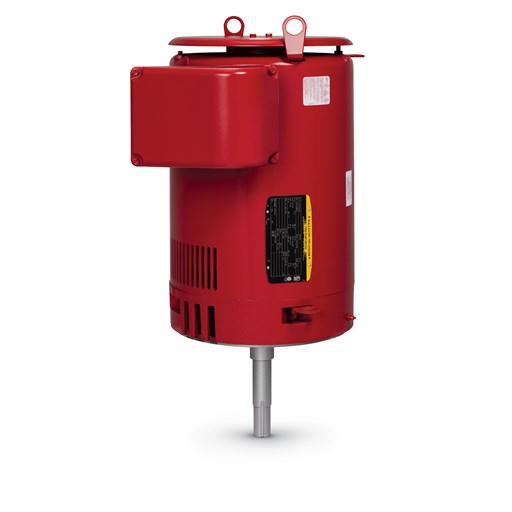

Description
Specs
| Catalog Number | VJPFPM2538T-2/4 |
|---|---|
| Enclosure | OPSB |
| Frame | 286JP |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 40.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 200.0 V @ 60 HZ 400.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CULUS CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 104.000 A @ 200.0 V 52.000 A @ 400.0 V |
| Design Code | B |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.7 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 52.0 a |
| Front Face Code | Drip Cover Mounting |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | G |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 12 @ 10 AWG |
| Motor Type | 3954M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 31.44 IN |
| Power Factor | 91 |
| Product Family | Fire Pump Motor |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | Included |
| Service Factor | 1.15 |
| Shaft Diameter | 1.250 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3500 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Wye Start - Delta Run |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VJPFPM2538T-2/4 |
|---|---|
| SPEC. | 39T043X945H2 |
| HZ | 60 |
| VOLTS | 200/400 |
| AMPS | 104/52 |
| EFF | 91.7 |
| RATING | 40C AMB-CONT |
Performance
| Temp. Rise @ Rated Load | 63° C |
|---|---|
| Temp. Rise @ S.F. Load | 79° C |
| Start Configuration | DOL |
| Break-Down Torque | 193 LB-FT |
| Pull-Up Torque | 71.9 LB-FT |
| Locked-Rotor Torque | 91.3 LB-FT |
| Starting Current | 330 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 5.0 | 68.0 | 84.0 | 89.0 | 91.0 | 91.0 | 90.0 | 91.0 | ||
| Efficiency | 0.0 | 93.2 | 94.1 | 93.3 | 92.0 | 90.3 | 88.5 | 91.0 | ||
| Speed (RPM) | 3,599 | 3,580 | 3,557 | 3,532 | 3,504 | 3,472 | 3,437 | 3,485 | ||
| Line Amps | 12.20 | 17.70 | 27.60 | 39.20 | 52.10 | 66.40 | 81.30 | 60.70 |
Parts
| 10CB3000SP | KOBX, CAST W/2.00 LEAD HOLE |
|---|---|
| 10CB3500SP | CONDUIT BOX LID, CAST |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
