Description
Specs
| Catalog Number | VJPFPM2534T-2/4 |
|---|---|
| Enclosure | OPSB |
| Frame | 284JP |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 30.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 200.0 V @ 60 HZ 400.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CULUS CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 40.000 A @ 400.0 V 80.000 A @ 200.0 V |
| Design Code | B |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 40.0 a |
| Front Face Code | Drip Cover Mounting |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | G |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 12 @ 10 AWG |
| Motor Type | 3936M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 29.23 IN |
| Power Factor | 89 |

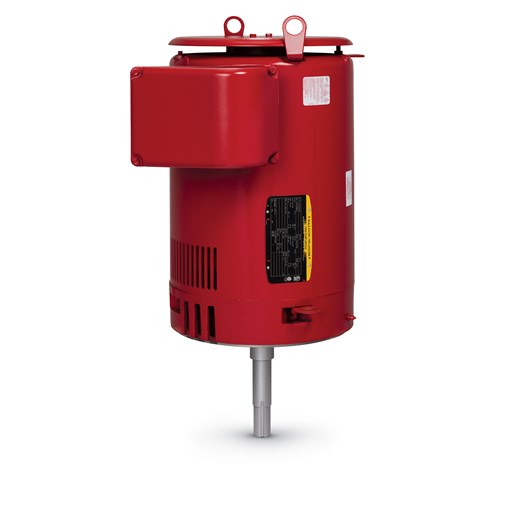

| Product Family | Fire Pump Motor |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | Included |
| Service Factor | 1.15 |
| Shaft Diameter | 1.250 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3510 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Wye Start - Delta Run |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VJPFPM2534T-2/4 |
|---|---|
| SPEC. | 39T043X943H2 |
| HZ | 60 |
| VOLTS | 200/400 |
| AMPS | 80/40 |
| EFF | 91 |
| RATING | 40C AMB-CONT |
Performance
| Line-Line Res. @ 25° C | 0.287 Ohms A Ph / 0 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 37° C |
| Temp. Rise @ S.F. Load | 46° C |
| Start Configuration | DOL |
| Break-Down Torque | 157 LB-FT |
| Pull-Up Torque | 48 LB-FT |
| Locked-Rotor Torque | 67.8 LB-FT |
| Starting Current | 248 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 7.0 | 61.0 | 81.0 | 87.0 | 89.0 | 89.0 | 88.0 | 89.0 | ||
| Efficiency | 0.0 | 89.3 | 92.1 | 92.4 | 91.5 | 90.2 | 88.5 | 90.7 | ||
| Speed (RPM) | 3,599 | 3,578 | 3,556 | 3,533 | 3,509 | 3,482 | 3,451 | 3,493 | ||
| Line Amps | 12.00 | 15.10 | 21.90 | 30.40 | 39.60 | 49.70 | 61.10 | 45.70 |
Parts
| 10CB3500SP | CONDUIT BOX LID, CAST |
|---|---|
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
