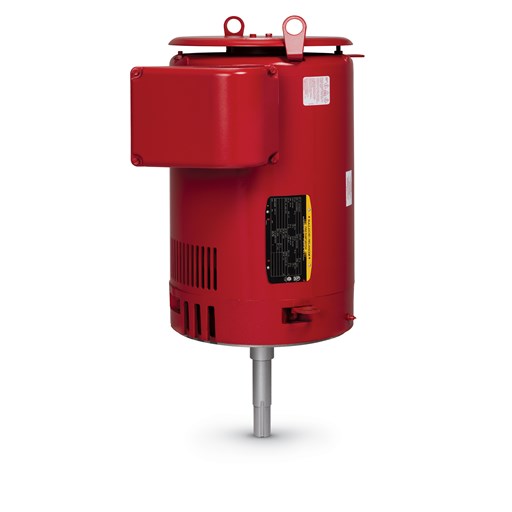

Description
Specs
| Catalog Number | VJPFPM2514T-2/4 |
|---|---|
| Enclosure | OPSB |
| Frame | 254JP |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 20.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 200.0 V @ 60 HZ 400.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CULUS CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 26.500 A @ 400.0 V 53.000 A @ 200.0 V |
| Design Code | B |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 90.2 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 26.5 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | G |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 12 @ 12 AWG |
| Motor Type | 3742M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 27.66 IN |
| Power Factor | 90 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 1.250 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Wye Start - Delta Run |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VJPFPM2514T-2/4 |
|---|---|
| SPEC. | 37N805R917H1 |
| HZ | 60 |
| VOLTS | 200/400 |
| AMPS | 53/26.5 |
| EFF | 90.2 |
| RATING | 40C AMB-CONT |
Performance
| Break-Down Torque | 90.9 LB-FT |
|---|---|
| Pull-Up Torque | 46.9 LB-FT |
| Locked-Rotor Torque | 52.8 LB-FT |
| Starting Current | 161 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 5.0 | 63.0 | 81.0 | 88.0 | 90.0 | 90.0 | 90.0 | 90.0 | ||
| Efficiency | 0.0 | 91.7 | 92.9 | 92.0 | 90.2 | 88.2 | 85.8 | 89.0 | ||
| Speed (RPM) | 3,599 | 3,565 | 3,530 | 3,492 | 3,449 | 3,398 | 3,341 | 3,418 | ||
| Line Amps | 7.12 | 9.54 | 14.40 | 20.10 | 26.50 | 33.80 | 41.90 | 30.90 |
