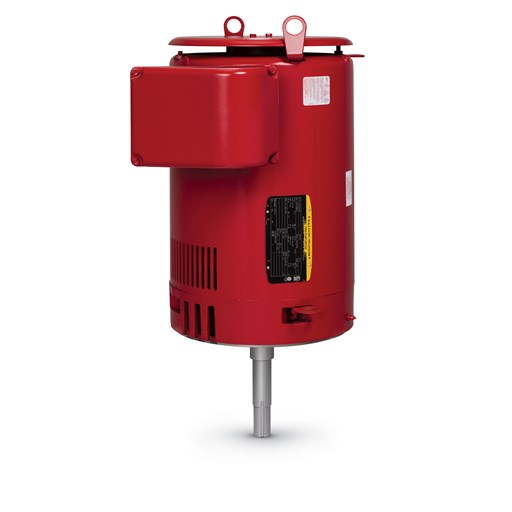

Description
Specs
| Catalog Number | VJPFPM2513T |
|---|---|
| Enclosure | OPSB |
| Frame | 254JP |
| Frame Material | Steel |
| Frequency | 50.00 Hz 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 10.000 HP @ 50 HZ 15.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1500 RPM @ 50 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 380.0 V @ 50 HZ 230.0 V @ 60 HZ 190.0 V @ 50 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA EEV UL |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 35.000 A @ 230.0 V 29.200 A @ 190.0 V 17.500 A @ 460.0 V 14.600 A @ 380.0 V |
| Design Code | B |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 14.6 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | F |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 12 AWG |
| Motor Type | 3936M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 28.07 IN |
| Power Factor | 87 |
| Product Family | Fire Pump Motor |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | Included |
| Service Factor | 1.15 |
| Shaft Diameter | 1.750 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1460 rpm 1760 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | VJPFPM2513T |
|---|---|
| SPEC. | 39N092X948H2 |
| HZ | 60 |
| VOLTS | 230/460 |
| AMPS | 35/17.5 |
| EFF | 91 |
| RATING | 40C AMB-CONT |
Performance
| Pull-Up Torque | 57.8 LB-FT |
|---|---|
| Locked-Rotor Torque | 82.7 LB-FT |
| Starting Current | 101 A |
| Full Load Torque | 0 LB-FT |
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 0.733 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 25° C |
| Temp. Rise @ S.F. Load | 31° C |
| Start Configuration | DOL |
| Break-Down Torque | 133 LB-FT |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 7.0 | 49.0 | 71.0 | 81.0 | 85.0 | 87.0 | 88.0 | 86.0 | |||||||||||
| Efficiency | 0.0 | 86.3 | 90.9 | 91.8 | 91.1 | 90.3 | 89.0 | 90.6 | |||||||||||
| Speed (RPM) | 1,499 | 1,493 | 1,485 | 1,477 | 1,468 | 1,459 | 1,448 | 1,463 | |||||||||||
| Line Amps | 5.77 | 6.75 | 8.91 | 11.50 | 14.50 | 18.00 | 21.50 | 16.60 |
Parts
| .25-20 X .75, TAPTITE II, HEX WSHR SLTD | |
| 09CB3501SP | CONDUIT BOX LID FOR 09CB3001 & 09CB3002 |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
