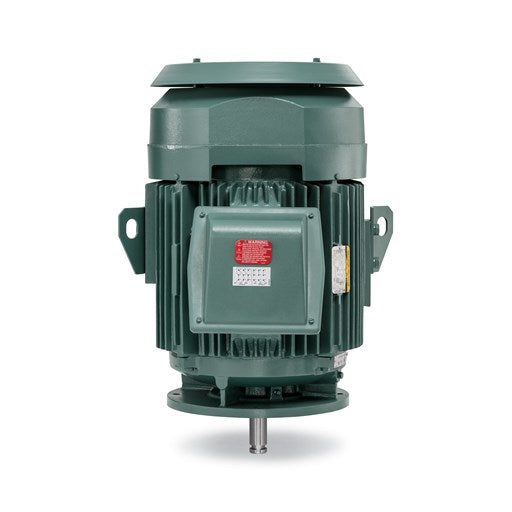

Description
Specs
| Catalog Number | VHECP4316T |
|---|---|
| Enclosure | TEFC |
| Frame | 365HP |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 75.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CCSAUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Bracket Mounted |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Current @ Voltage | 171.000 A @ 230.0 V 85.900 A @ 460.0 V |
| Design Code | B |
| Drip Cover | Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 95.4 % |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 85.9 a |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Motor Lead Quantity/Wire Size | 3 @ 4 AWG |
| Motor Type | A36070M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 35.36 IN |
| Power Factor | 86 |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | P-Base |
| Service Factor | 1.15 |
| Shaft Diameter | 1.625 IN |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1780 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
Drawings
Nameplate
| CAT.NO. | VHECP4316T |
|---|---|
| HP | 75 |
| FRAME | 365HP |
| DRIVE END BEARING | 65BC03J30X |
| OPP D.E. BEARING | 65BC03J30X |
| D.E.BRG.DATA | 6313 |
| O.D.E.BRG.DATA | 6313 |
| 3/4 LOAD EFF. | 95.4 |
Performance
| Rated Load |
|---|
Parts
| 034017014AB | LCKW 3/8 STD. PLATED |
|---|
