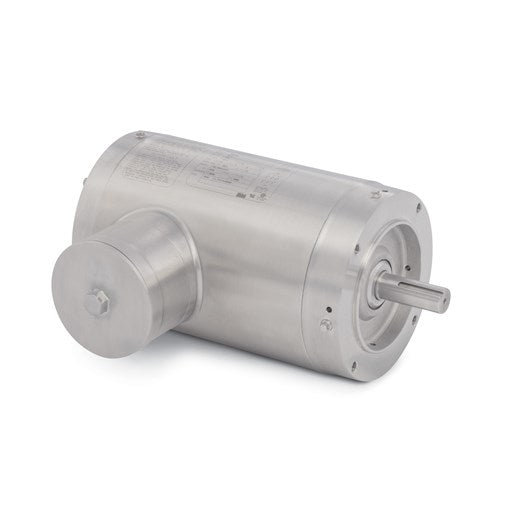

Description
Specs
| KVA Code | N |
|---|---|
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Finish | UNPAINTED |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | @ AWG 9 @ 18 AWG |
| Motor Type | 3546M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 16.21 IN |
| Power Factor | 89 |
| Product Family | WD All SS Encapsulated |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3480 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| VOLTS | 230/460 |
|---|---|
| AMP | 4.8/2.4 |
| RPM | 3480 |
| FRAME | 56C |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 88.5 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| DE | 6205 |
| ENCL | TENV |
