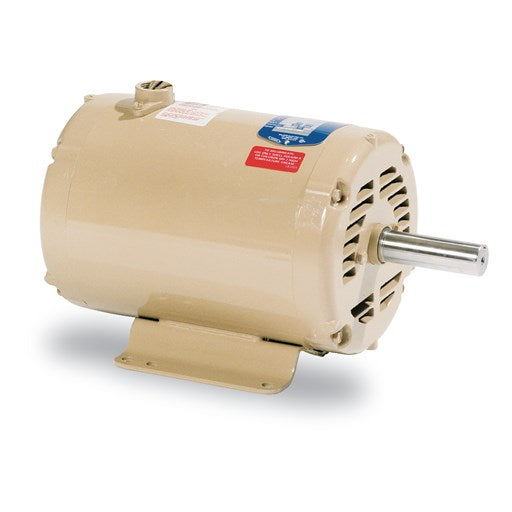

Description
Specs
| Catalog Number | UCM1014 |
|---|---|
| Enclosure | OPEN |
| Frame | 215Z |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 10.000 HP @ 60 HZ 15.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ 208.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 38.000 A @ 208.0 V 36.000 A @ 230.0 V 18.000 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 85.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 18.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | H |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Pipe Or Pipe Adaptor |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 14 AWG |
| Motor Type | 3726M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 16.69 IN |
| Power Factor | 89 |
| Product Family | General Purpose |
| Product Type | FARM DUTY |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | Included |
| Service Factor | 1.00 |
| Shaft Diameter | 1.125 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | Normally Closed Thermostat |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| SPEC. | 37E766Z92 |
|---|---|
| HP | 10-15 AIR OVER |
| VOLTS | 208-230/460 |
| AMP | 38-36/18 |
| RPM | 3450 |
| FRAME | 215Z |
| SER.F. | 1.00 |
| NEMA-NOM-EFF | 85.5 |
| RATING | 40C AMB-CONT |
| DE | 6307 |
| ENCL | OPEN |
| CAT.NO. | UCM1014 |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 1.18 Ohms A Ph / 0 Ohms B Ph |
| Start Configuration | DOL |
| Break-Down Torque | 69.5 LB-FT |
| Pull-Up Torque | 46.5 LB-FT |
| Locked-Rotor Torque | 48.5 LB-FT |
| Starting Current | 110 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 18.0 | 57.0 | 75.0 | 84.0 | 88.0 | 87.0 | 90.0 | 0.0 | ||
| Efficiency | 0.0 | 67.0 | 84.8 | 86.8 | 89.0 | 87.7 | 87.8 | 0.0 | ||
| Speed (RPM) | 3,595 | 3,580 | 3,566 | 3,542 | 3,524 | 3,506 | 3,486 | 0 | ||
| Line Amps | 5.10 | 6.30 | 7.50 | 9.70 | 12.10 | 15.40 | 17.80 | 0.00 |
