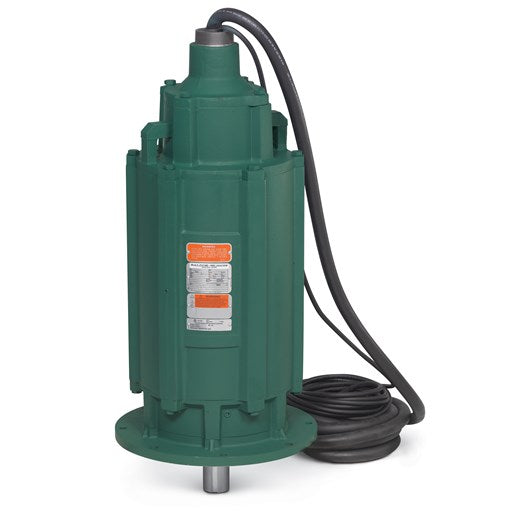

Description
Specs
| Catalog Number | SUM77506-4 |
|---|---|
| Enclosure | XPNV |
| Frame | 360TY |
| Frame Material | Iron |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 75.000 @ 60 HZ |
| Phase | 3 |
| Voltage @ Frequency | 460 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | UL CSA CCSA US |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Current @ Voltage | 90.9 A @ 460 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | 15 MIN |
| Feedback Device | NO FEEDBACK |
| Frame Prefix | X |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | F |
| Lifting Lugs | Standard Lifting Lugs |
| Motor Type | M |
| Mounting Arrangement | W6 |
| Number of Poles | 6 |
| Product Family | Other |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Service Factor | 1.15 |
| Shaft Diameter | 2.499 IN |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| XP Temp Code | T3C |
Drawings
Nameplate
| CLASS I GROUP | C D X |
|---|---|
| CLASS II GROUP | X X X |
| OPERATING TEMP CODE | T3C |
| CAT NO | SUM77506-4 |
| HP | 75 |
| FRAME SIZE | X0360TY |
| D.E. BRG. | 90BJ33J30X |
| O.D.E. BRG. | 50BC03JG30X |
Performance
| Rated Load |
|---|
Parts
| 421900240FU | ORING |
|---|---|
| 421900124FU | ORING |
| 421900240FU | ORING |
