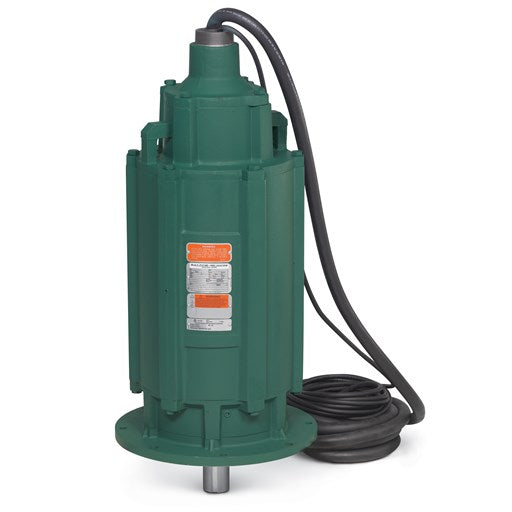

Description
Specs
| Catalog Number | SUM71506-4 |
|---|---|
| Enclosure | XPNV |
| Frame | 250TY |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 15.000 @ 60 HZ |
| Phase | 3 |
| Voltage @ Frequency | 460 V @ 60 HZ 230 V @ 60 HZ |
| XP Class and Group | CLI GP C,D |
| XP Division | Not Applicable |
| Agency Approvals | CCSA US |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Current @ Voltage | 40.6 A @ 230 V 20.3 A @ 460 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| IP Rating | NONE |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Motor Type | M |
| Mounting Arrangement | V1 |
| Number of Poles | 6 |
| Overall Length | 37.34 IN |
| Product Family | Pump - Centrifugal |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Service Factor | 1.15 |
| Shaft Diameter | 1.750 IN |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Winding | Normally Closed Thermostat |
| XP Temp Code | T3C |
Drawings
Nameplate
| HP | 15 |
|---|---|
| FRAME SIZE | 250TY |
| D.E. BRG. | 60BC03JPP30A |
| O.D.E. BRG. | 40BC02JPG30A |
| CLASS I GROUP | C D X |
| CLASS II GROUP | X X X |
| OPERATING TEMP CODE | T3C |
| CAT NO | SUM71506-4 |
Performance
| Rated Load |
|---|
Parts
| 413480001R | RESISTOR ASSEMBLY-BLANKET |
|---|---|
| 421900168FU | ORING |
| 421900168FU | ORING |
| 064262012D | SEAL - Mech Ceramic Seal |
| 064262012E | SEAL |
| 700385014N | CCA #6 25' 210/250 |
| 421900092FU | ORING |
