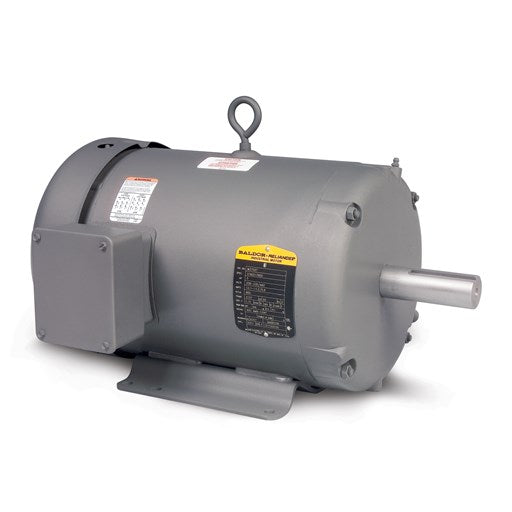

Description
Specs
| Catalog Number | M3355 |
|---|---|
| Enclosure | TEFC |
| Frame | 42 |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | .170 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| Agency Approvals | UR CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | .600 A @ 460.0 V 1.200 A @ 230.0 V 1.400 A @ 208.0 V |
| Design Code | - |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 62.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| Feedback Signal | NONE |
| High Voltage Full Load Amps | 0.6 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | B |
| Inverter Code | Not Inverter |
| IP Rating | NONE |
| KVA Code | - |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Motor Type | 3316M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 9.56 IN |
| Power Factor | 51 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.35 |
| Shaft Diameter | 0.375 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1725 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | M3355 |
|---|---|
| SPEC. | 33-870-423 |
| HP | .17 |
| VOLTS | 230/460 |
| AMP | 1.2/.6 |
| RPM | 1725 |
| FRAME | 42 |
| SER.F. | 1.35 |
| NEMA-NOM-EFF | 62 |
| RATING | 40C AMB-CONT |
| DE | 6203 |
| ENCL | TEFC |
Performance
| Line-Line Res. @ 25° C | 68.8 Ohms A Ph / 0 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 26° C |
| Temp. Rise @ S.F. Load | 32° C |
| Start Configuration | DOL |
| Break-Down Torque | 2.5 LB-FT |
| Pull-Up Torque | 2.6 LB-FT |
| Locked-Rotor Torque | 2.9 LB-FT |
| Starting Current | 2.6 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 15.0 | 24.0 | 34.0 | 42.0 | 50.0 | 57.0 | 63.0 | 60.0 | ||
| Efficiency | 0.0 | 39.3 | 55.4 | 63.8 | 68.5 | 71.4 | 72.9 | 72.6 | ||
| Speed (RPM) | 1,793 | 1,781 | 1,769 | 1,755 | 1,742 | 1,727 | 1,711 | 1,721 | ||
| Line Amps | 0.41 | 0.42 | 0.43 | 0.44 | 0.46 | 0.49 | 0.52 | 0.50 |
Parts
| TAG-INSTAL-MAINT no wire (2100bx)4/22 |
