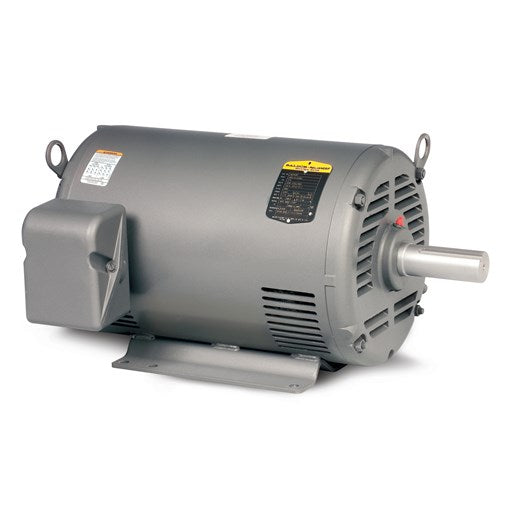

Description
Specs
| Catalog Number | M3112-57 |
|---|---|
| Enclosure | OPEN |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 50.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | .750 HP @ 50 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1500 RPM @ 50 HZ |
| Voltage @ Frequency | 230.0 V @ 50 HZ 400.0 V @ 50 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CE CSA UR WEEE |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 3.200 A @ 230.0 V 1.900 A @ 400.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 70.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.9 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | K |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3420M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 10.14 IN |
| Power Factor | 58 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1425 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | M3112-57 |
|---|---|
| SPEC. | 34F779-2382G1 |
| HP | .75/KW .56 |
| VOLTS | 230/400 |
| AMP | 3.2/1.9 SFA 3.6/2.1 |
| RPM | 1425 1/MIN IP23 IC01 12KG |
| FRAME | 56 |
| SER.F. | 1.25 |
| NEMA-NOM-EFF | 70 |
| RATING | 40C AMB-S1 CONT |
| DE | 6203 |
| ENCL | OPEN |
Performance
| No-Load Current | 0 A |
|---|---|
| Line-Line Res. @ 25° C | 17.1 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 78° C |
| Temp. Rise @ S.F. Load | 98° C |
| Start Configuration | DOL |
| Break-Down Torque | 11.9 LB-FT |
| Pull-Up Torque | 11.6 LB-FT |
| Locked-Rotor Torque | 15.7 LB-FT |
| Starting Current | 12.3 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 11.0 | 25.0 | 37.0 | 48.0 | 58.0 | 64.0 | 70.0 | 64.0 | ||
| Efficiency | 0.0 | 50.7 | 64.9 | 70.0 | 71.8 | 71.4 | 69.9 | 71.4 | ||
| Speed (RPM) | 1,496 | 1,483 | 1,466 | 1,449 | 1,431 | 1,409 | 1,386 | 1,409 | ||
| Line Amps | 1.63 | 1.63 | 1.69 | 1.80 | 1.90 | 2.14 | 2.38 | 2.14 |
Parts
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
|---|
