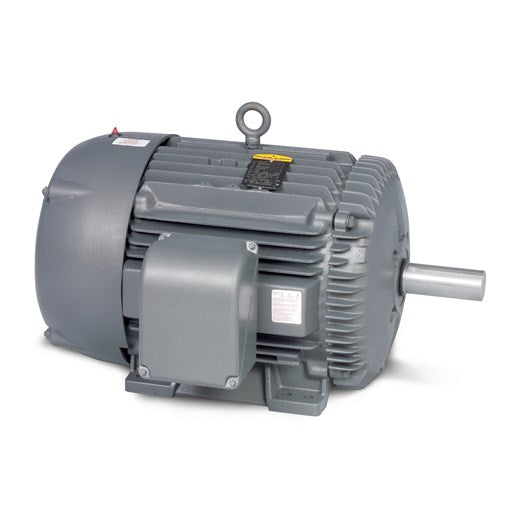

Description
Specs
| Catalog Number | M1757T |
|---|---|
| Enclosure | TEFC |
| Frame | 184T |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | .750 HP @ 60 HZ 3.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | UR CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 4.000 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.6 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | G |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 16 AWG |
| Motor Type | 3628M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 8 |
| Overall Length | 16.54 IN |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.125 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1725 rpm 850 rpm |
| Speed Code | 2S-1W-VT |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| SPEC. | 36A01W286 |
|---|---|
| HP | 3/.75 |
| VOLTS | 460 |
| AMP | 4/1.6 |
| RPM | 1725/850 |
| FRAME | 184T |
| SER.F. | 1.15 |
| RATING | 40C AMB-CONT |
| DE | 6206 |
| ENCL | TEFC |
Performance
| Pull-Up Torque | 7 LB-FT |
|---|---|
| Locked-Rotor Torque | 8.1 LB-FT |
| Starting Current | 5.4 A |
| Full Load Torque | 0 LB-FT |
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 31.8 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 56° C |
| Temp. Rise @ S.F. Load | 66° C |
| Start Configuration | DOL |
| Break-Down Torque | 10 LB-FT |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 14.0 | 32.0 | 46.0 | 59.0 | 70.0 | 72.0 | 75.0 | 71.0 | |||||||||||
| Efficiency | 0.0 | 52.4 | 66.0 | 70.9 | 71.8 | 70.7 | 67.5 | 71.1 | |||||||||||
| Speed (RPM) | 898 | 887 | 875 | 861 | 845 | 826 | 801 | 834 | |||||||||||
| Line Amps | 1.10 | 1.10 | 1.20 | 1.30 | 1.40 | 1.70 | 2.00 | 1.58 |
Parts
| 36GS1000SP | GASKET-CONDUIT BOX, .06 THICK #SV-330 LE |
|---|---|
| 36EP3100A01SP | PUEP ASSEMBLY FOR ROUTING PURPOSES |
| 36FN3000A01SP | EXFN, PLASTIC, 7.00 OD, .912 ID |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
