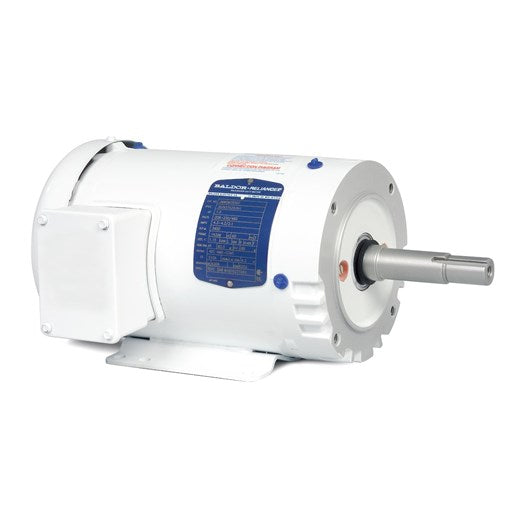

Description
Specs
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
|---|---|
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR NEMA PREMIUM CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 21.500 A @ 460.0 V 43.000 A @ 230.0 V |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 21.5 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 10 AWG |
| Motor Type | 3960M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 25.06 IN |
| Power Factor | 93 |
| Product Family | Wash Down |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | None |
| Service Factor | 1.00 |
| Shaft Diameter | 1.250 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3525 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | JMEWDM41906T |
|---|---|
| SPEC. | 39K068X632G1 |
| HP | 20 |
| VOLTS | 230/460 |
| AMP | 43/21.5 |
| RPM | 3525 |
| FRAME | 256JM |
| SER.F. | 1.00 |
| NEMA-NOM-EFF | 91 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| DE | 6309 |
| ENCL | TEFC |
| BLANK | 20:1CT, 20:1VT, 1.00SF |
Performance
| Start Configuration | DOL |
|---|---|
| Break-Down Torque | 114 LB-FT |
| Pull-Up Torque | 35.3 LB-FT |
| Locked-Rotor Torque | 51 LB-FT |
| Starting Current | 152 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 8.0 | 71.0 | 88.0 | 92.0 | 93.0 | 93.0 | 92.0 | 93.0 | ||
| Efficiency | 0.0 | 91.0 | 93.5 | 93.3 | 92.5 | 91.2 | 89.7 | 91.7 | ||
| Speed (RPM) | 3,599 | 3,581 | 3,562 | 3,541 | 3,519 | 3,492 | 3,465 | 3,503 | ||
| Line Amps | 4.75 | 6.84 | 11.20 | 16.20 | 21.50 | 27.60 | 33.80 | 25.20 |
Parts
| .25-20 X .75, TAPTITE II, HEX WSHR SLTD | |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
