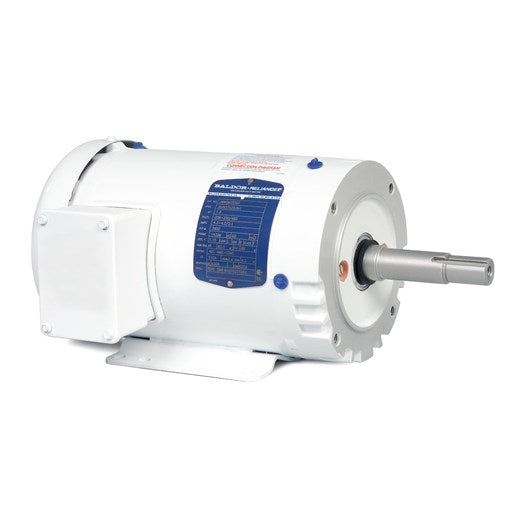

Description
Specs
| Catalog Number | JMEWDM3711T |
|---|---|
| Enclosure | TEFC |
| Frame | 215JM |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 10.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR NEMA PREMIUM CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 21.600 A @ 230.0 V 24.000 A @ 208.0 V 10.800 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 90.2 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 10.8 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| IP Rating | NONE |
| KVA Code | H |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 14 AWG |
| Motor Type | 3736M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 20.91 IN |
| Power Factor | 96 |
| Product Family | Wash Down |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | JMEWDM3711T |
|---|---|
| SPEC. | 37H883R697G1 |
| HP | 10 |
| VOLTS | 230/460 |
| AMP | 21.6/10.8 |
| RPM | 3450 |
| FRAME | 215JM |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 90.2 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| DE | 6309 |
| ENCL | TEFC |
| BLANK | 20:1CT, 20:1VT, 1.00SF |
Performance
| Temp. Rise @ Rated Load | 59° C |
|---|---|
| Temp. Rise @ S.F. Load | 74° C |
| Start Configuration | DOL |
| Break-Down Torque | 58.2 LB-FT |
| Pull-Up Torque | 24.1 LB-FT |
| Locked-Rotor Torque | 33.7 LB-FT |
| Starting Current | 81.7 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 13.0 | 74.0 | 91.0 | 94.0 | 96.0 | 96.0 | 94.0 | 96.0 | ||
| Efficiency | 0.0 | 87.0 | 91.0 | 91.3 | 90.6 | 89.9 | 88.3 | 90.2 | ||
| Speed (RPM) | 3,598 | 3,569 | 3,542 | 3,512 | 3,480 | 3,447 | 3,408 | 3,460 | ||
| Line Amps | 2.59 | 3.73 | 5.77 | 8.25 | 10.80 | 13.50 | 16.80 | 12.40 |
Parts
| 37FN3002A01SP | EXFN, PLASTIC, 9.00 OD, 1.155 ID |
|---|---|
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
