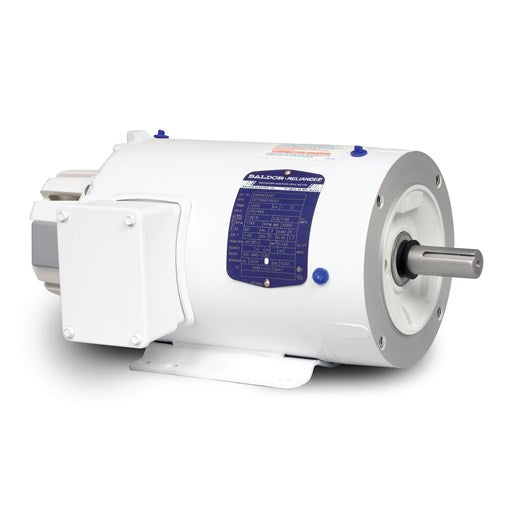

Description
Specs
| Catalog Number | IDWNM22938T |
|---|---|
| Enclosure | TENV |
| Frame | 254TC |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 10.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | UR CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 12.000 A @ 460.0 V 24.000 A @ 230.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.7 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 12.0 a |
| Front Face Code | Encoder/Feedback Device |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | H |
| Inverter Code | Inverter Duty |
| KVA Code | H |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max Speed | 5000 rpm |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 12 AWG |
| Motor Type | 3956M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 23.92 IN |
| Power Factor | 85 |
| Product Family | Wash Down |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS NON-COMPLIANT |
| Service Factor | 1.00 |
| Shaft Diameter | 1.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1765 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | Normally Closed Thermostat |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT NO | IDWNM22938T |
|---|---|
| SPEC. | 39R099W632G1 |
| FRAME | 254TC |
| VOLTS | 230/460 |
| MAG CUR | 8.8/4.4 |
| RPM | 1765 |
| HZ | 60 |
| SER.F. | 1.00 |
| NEMA-NOM-EFF | 91.7 |
| RATING | 40C AMB-CONT |
| DE BRG | 6309 |
| CC | 010A |
Performance
| Start Configuration | DOL |
|---|---|
| Break-Down Torque | 114 LB-FT |
| Pull-Up Torque | 41.5 LB-FT |
| Locked-Rotor Torque | 58 LB-FT |
| Starting Current | 87 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 7.0 | 52.0 | 72.0 | 81.0 | 85.0 | 86.0 | 87.0 | 0.0 | ||
| Efficiency | 0.0 | 87.7 | 91.7 | 92.4 | 92.0 | 91.2 | 90.1 | 0.0 | ||
| Speed (RPM) | 1,799 | 1,791 | 1,783 | 1,774 | 1,764 | 1,753 | 1,741 | 0 | ||
| Line Amps | 4.40 | 5.30 | 7.20 | 9.50 | 12.00 | 14.90 | 17.90 | 0.00 |
