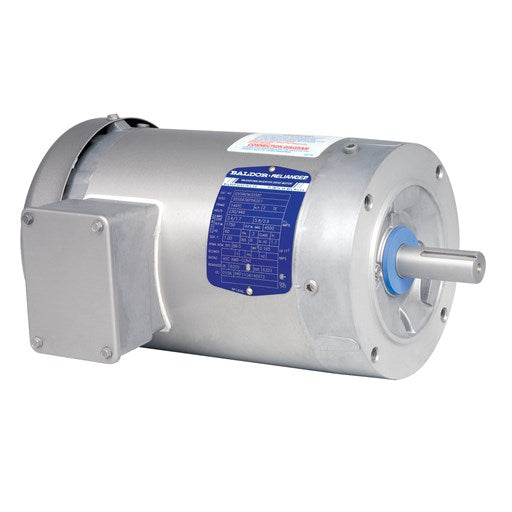

Description
Specs
| Catalog Number | IDVSWDM3615T |
|---|---|
| Enclosure | TEFC |
| Frame | 184TC |
| Frame Material | Stainless Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 5.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | UR CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 13.000 A @ 230.0 V 6.500 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 89.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 6.5 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | H |
| Inverter Code | Inverter Duty |
| KVA Code | J |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max Speed | 6000 rpm |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 16 AWG |
| Motor Type | 3646M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 18.00 IN |
| Power Factor | 81 |
| Product Family | Wash Down Paint Free |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS NON-COMPLIANT |
| Service Factor | 1.00 |
| Shaft Diameter | 1.125 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1750 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | Normally Closed Thermostat |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT NO | IDVSWDM3615T |
|---|---|
| SPEC. | 36K606S719G1 |
| FRAME | 184TC |
| VOLTS | 230/460 |
| MAG CUR | 5.8/2.9 |
| RPM | 1750 |
| HZ | 60 |
| SER.F. | 1.00 |
| NEMA-NOM-EFF | 89.5 |
| RATING | 40C AMB-CONT |
| DE BRG | 6206 |
| CC | 010A |
Performance
| Temp. Rise @ Rated Load | 87° C |
|---|---|
| Temp. Rise @ S.F. Load | 107° C |
| Start Configuration | DOL |
| Break-Down Torque | 49.7 LB-FT |
| Pull-Up Torque | 27.7 LB-FT |
| Locked-Rotor Torque | 32.3 LB-FT |
| Starting Current | 48.3 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 6.0 | 42.0 | 64.0 | 75.0 | 81.0 | 83.0 | 84.0 | 0.0 | ||
| Efficiency | 0.0 | 86.7 | 90.5 | 90.8 | 90.1 | 88.4 | 86.6 | 0.0 | ||
| Speed (RPM) | 1,799 | 1,788 | 1,776 | 1,763 | 1,748 | 1,732 | 1,714 | 0 | ||
| Line Amps | 2.91 | 3.27 | 4.10 | 5.20 | 6.49 | 8.02 | 9.69 | 0.00 |
Parts
| 37GS3010SP | 1/16"WHITE LID GASKET |
|---|---|
| HW4600B32SP | V-RING SLINGER 1.000 X 1.540 X .24 VITON |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
