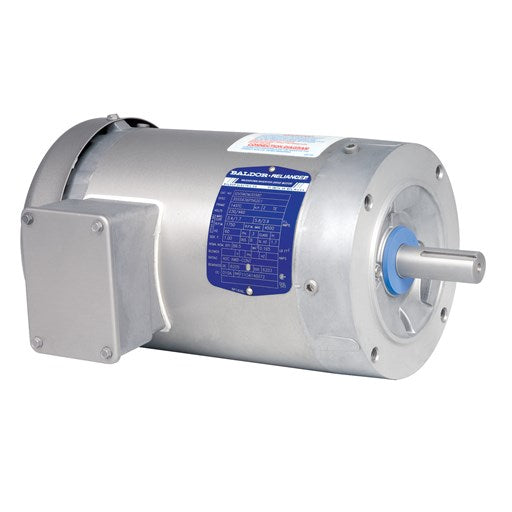

Description
Specs
| Catalog Number | IDVSWDM3558T |
|---|---|
| Enclosure | TEFC |
| Frame | 145TC |
| Frame Material | Stainless Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 2.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | UR CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 2.900 A @ 460.0 V 5.800 A @ 230.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 86.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 2.9 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | H |
| Inverter Code | Inverter Duty |
| KVA Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max Speed | 4500 rpm |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Motor Type | 3528M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 13.29 IN |
| Power Factor | 75 |
| Product Family | Wash Down Paint Free |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS NON-COMPLIANT |
| Service Factor | 1.00 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1750 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | Normally Closed Thermostat |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT NO | IDVSWDM3558T |
|---|---|
| SPEC. | 35SS636P562G1 |
| FRAME | 145TC |
| VOLTS | 230/460 |
| MAG CUR | 3.4/1.7 |
| RPM | 1750 |
| HZ | 60 |
| SER.F. | 1.00 |
| NEMA-NOM-EFF | 86.5 |
| RATING | 40C AMB-CONT |
| DE BRG | 6205 |
| CC | 010A |
Performance
| Temp. Rise @ Rated Load | 75° C |
|---|---|
| Temp. Rise @ S.F. Load | 90° C |
| Start Configuration | DOL |
| Break-Down Torque | 24.6 LB-FT |
| Pull-Up Torque | 12.2 LB-FT |
| Locked-Rotor Torque | 17.9 LB-FT |
| Starting Current | 23.7 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 7.0 | 33.0 | 53.0 | 67.0 | 75.0 | 80.0 | 84.0 | 0.0 | ||
| Efficiency | 0.0 | 77.7 | 85.4 | 86.9 | 86.6 | 85.8 | 84.2 | 0.0 | ||
| Speed (RPM) | 1,799 | 1,789 | 1,778 | 1,765 | 1,751 | 1,737 | 1,721 | 0 | ||
| Line Amps | 1.72 | 1.80 | 2.04 | 2.39 | 2.88 | 3.39 | 4.01 | 0.00 |
Parts
| HW4600B39SP | V-RING SLINGER 0.550 X 0.790 X .18 VITON |
|---|---|
| 35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
