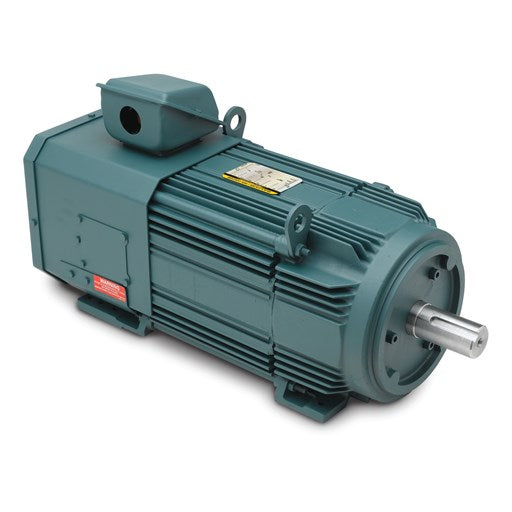

Description
Specs
| Catalog Number | IDBRPM18204C |
|---|---|
| Enclosure | TEBC |
| Frame | FL1852C |
| Frame Material | Exposed Laminations |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 20.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| Agency Approvals | CCSA US |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Current @ Voltage | 27.000 A @ 460.0 V |
| Duty Rating | CONT |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 27.0 a |
| Frame Prefix | FL |
| Heater Indicator | No Heater |
| Insulation Class | H |
| Mounting Arrangement | F3 |
| Overall Length | 27.96 IN |
| Product Family | General Industrial |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Service Factor | 1.00 |
| Shaft Diameter | 1.625 IN |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 1755 rpm |
| Motor Standards | NEMA |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | Normally Closed Thermostat |
Drawings
Nameplate
| CAT.NO. | IDBRPM18204C |
|---|---|
| PH. | 3 |
| DESIGN NO. | L3218A |
| S.F. | 1.0 |
Performance
| Rated Load |
|---|
