Description
Specs

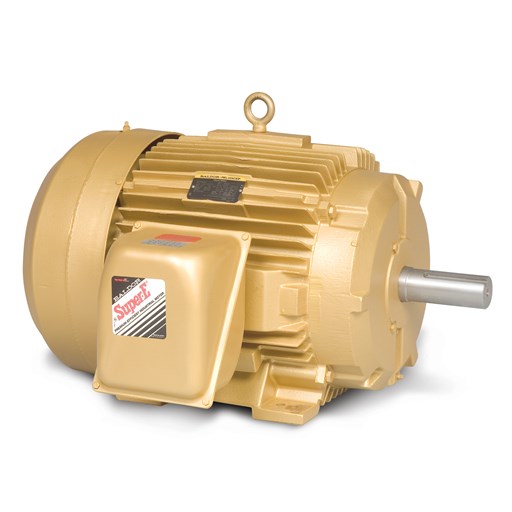

| Catalog Number | EM4402T-4 |
|---|---|
| Enclosure | TEFC |
| Frame | 405TS |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 100.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CCSAUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Current @ Voltage | 110.000 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 95.0 % |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 110.0 a |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| IP Rating | NONE |
| KVA Code | F |
| Lifting Lugs | Standard Lifting Lugs |
| Motor Lead Quantity/Wire Size | 6 @ 4 AWG |
| Motor Type | A40060M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 35.04 IN |
| Power Factor | 90 |
| Product Family | General Industrial |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Service Factor | 1.15 |
| Shaft Diameter | 2.125 IN |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3565 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Wye Start - Delta Run |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
Drawings
Nameplate
| CAT.NO. | EM4402T-4 |
|---|---|
| HP | 100 |
| FRAME | 405TS |
| DRIVE END BEARING | 65BC03J30X |
| OPP D.E. BEARING | 65BC03J30X |
Performance
| Rated Load |
|---|
