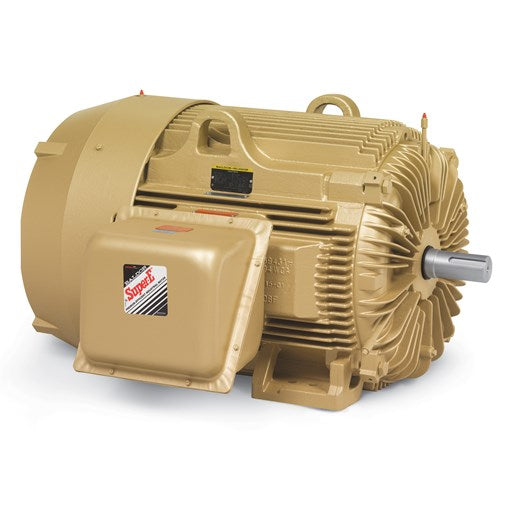

Description
Specs
| Catalog Number | EM4400T-G |
|---|---|
| Enclosure | TEFC |
| Frame | 405T |
| Frame Material | Iron |
| Frequency | 50.00 Hz 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 75.000 HP @ 50 HZ 100.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1500 RPM @ 50 HZ |
| Voltage @ Frequency | 190.0 V @ 50 HZ 230.0 V @ 60 HZ 380.0 V @ 50 HZ 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CCSAUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Current @ Voltage | 206.000 A @ 190.0 V 224.000 A @ 230.0 V 246.000 A @ 208.0 V 112.000 A @ 460.0 V 103.000 A @ 380.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 95.4 % |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 103.0 a |
| Heater Indicator | No Heater |
| Insulation Class | H |
| Inverter Code | Inverter Ready |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Motor Lead Quantity/Wire Size | 3 @ 2 AWG |
| Motor Type | A40064M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 38.04 IN |
| Power Factor | 87 |
| Product Family | General Industrial |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Service Factor | 1.15 |
| Shaft Diameter | 2.875 IN |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1485 rpm 1785 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
Drawings
Nameplate
| SPEC NO. | P40G3927 |
|---|---|
| HP | 100//75 |
| RPM | 1785//1485 |
| VOLTS | 230/460//190/380 |
| AMPS | 224/112//206/103 |
| DRIVE END BEARING | 80BC03J30X |
| OPP D.E. BEARING | 80BC03J30X |
Performance
| Rated Load |
|---|
