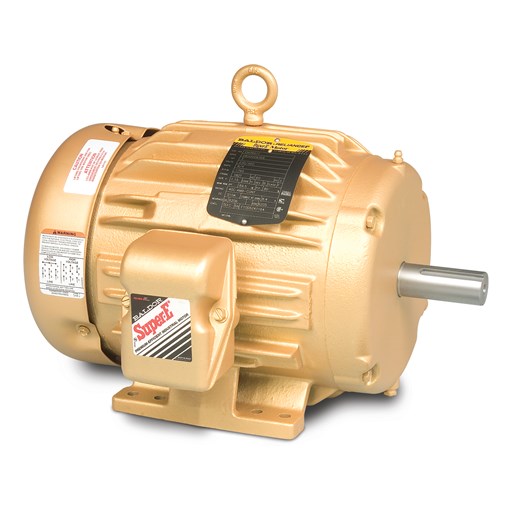

Description
Specs
| Catalog Number | EM3545-G |
|---|---|
| Enclosure | TEFC |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 1.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA EEV NEMA PREMIUM NEMA_PREMIUM UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 3.000 A @ 208.0 V 2.800 A @ 230.0 V 1.400 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 77.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.4 a |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | H |
| Inverter Code | Inverter Ready |
| KVA Code | K |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Motor Type | 3516M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 12.23 IN |
| Power Factor | 87 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 IN |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EM3545-G |
|---|---|
| SPEC | 35Z951Y474G1 |
| HP | 1 |
| VOLTS | 230/460 |
| AMPS | 2.8/1.4 |
| RPM | 3450 |
| FRAME | 56 |
| SF | 1.25 |
| NEMA NOM. EFF | 77 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| ENCL | TEFC |
| DE | 6205 |
Performance
| Rated Load | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 57.0 | 74.0 | 82.0 | 85.0 | 87.0 | 87.0 | 87.0 | ||||
| Efficiency | 0.0 | 53.9 | 67.9 | 73.4 | 75.1 | 75.6 | 74.5 | 75.6 | ||
| Speed (RPM) | 3,582 | 3,549 | 3,513 | 3,473 | 3,431 | 3,383 | 3,329 | 3,383 | ||
| Line Amps | 0.66 | 0.77 | 0.94 | 1.17 | 1.43 | 1.72 | 2.06 | 1.72 |
