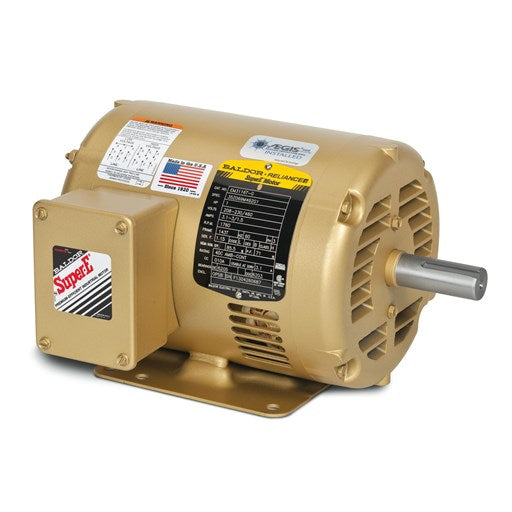

Description
Specs
| Catalog Number | EM31159 |
|---|---|
| Enclosure | ODP |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 1.500 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CURUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 2.600 A @ 460.0 V 5.200 A @ 230.0 V 5.600 A @ 208.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 84.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 2.6 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Motor Type | 3540M |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 14.00 IN |
| Power Factor | 65 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1160 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| SPEC. | 35J382P254G1 |
|---|---|
| HP | 1.5 |
| VOLTS | 230/460 |
| AMPS | 5.2/2.6 |
| RPM | 1160 |
| FRAME | 56H |
| SF | 1.15 |
| F.L. AVG. EFF. | 84 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | ODP |
| USABLE AT | 50HZ 1.5HP 190/380V 6/3A |
Performance
| Temp. Rise @ Rated Load | 40° C |
|---|---|
| Temp. Rise @ S.F. Load | 51° C |
| Start Configuration | DOL |
| Break-Down Torque | 26.1 LB-FT |
| Pull-Up Torque | 18.3 LB-FT |
| Locked-Rotor Torque | 20.4 LB-FT |
| Starting Current | 17.8 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 8.0 | 28.0 | 44.0 | 56.0 | 65.0 | 70.0 | 74.0 | 68.0 | ||
| Efficiency | 0.0 | 71.5 | 80.8 | 83.7 | 84.2 | 84.0 | 82.7 | 84.2 | ||
| Speed (RPM) | 1,199 | 1,190 | 1,182 | 1,173 | 1,162 | 1,152 | 1,136 | 1,156 | ||
| Line Amps | 1.74 | 1.82 | 1.99 | 2.24 | 2.59 | 2.96 | 3.45 | 2.81 |
