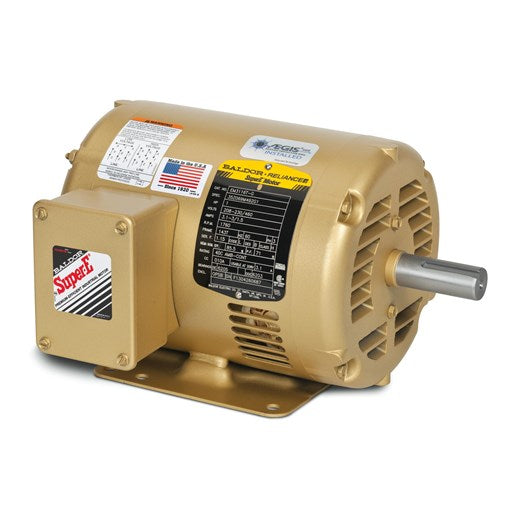

Description
Specs
| Catalog Number | EM31115 |
|---|---|
| Enclosure | ODP |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 1.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CURUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 1.600 A @ 460.0 V 3.200 A @ 230.0 V 3.500 A @ 208.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 77.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.6 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Motor Type | 3420M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 10.88 IN |
| Power Factor | 82 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EM31115 |
|---|---|
| SPEC. | 34B061-3226G1 |
| HP | 1 |
| VOLTS | 230/460 |
| AMPS | 3.2/1.6 |
| RPM | 3450 |
| FRAME | 56 |
| SF | 1.25 |
| F.L. AVG. EFF. | 77 |
| RATING | 40C AMB-CONT |
| DE | 6203 |
| ENCL | ODP |
| USABLE AT | 50HZ 1HP 190/380V 3.4/1.7A |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 3.213 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 19° C |
| Temp. Rise @ S.F. Load | 23° C |
| Start Configuration | DOL |
| Break-Down Torque | 7.7 LB-FT |
| Pull-Up Torque | 5.67 LB-FT |
| Locked-Rotor Torque | 7.34 LB-FT |
| Starting Current | 29.4 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 17.0 | 42.0 | 60.0 | 73.0 | 80.0 | 85.0 | 88.0 | 85.0 | |||||||||||
| Efficiency | 0.0 | 61.1 | 74.0 | 78.8 | 80.8 | 81.4 | 81.0 | 81.4 | |||||||||||
| Speed (RPM) | 3,590 | 3,568 | 3,546 | 3,520 | 3,494 | 3,464 | 3,431 | 3,464 | |||||||||||
| Line Amps | 1.72 | 1.87 | 2.14 | 2.48 | 2.92 | 3.40 | 4.00 | 3.40 |
Parts
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
|---|
