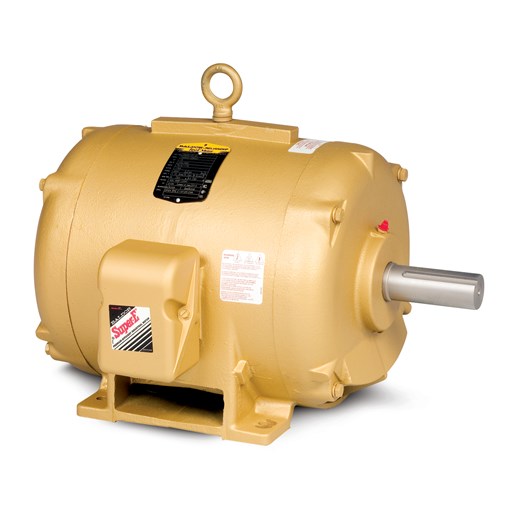

Description
Specs
| Catalog Number | EM2539T-CI |
|---|---|
| Enclosure | OPEN |
| Frame | 324T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 40.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA EEV NEMA PREMIUM NEMA_PREMIUM UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 96.000 A @ 230.0 V 48.000 A @ 460.0 V |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 94.1 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 48.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| IP Rating | NONE |
| KVA Code | H |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 8 AWG |
| Motor Type | 1250M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 26.13 IN |
| Power Factor | 82 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 2.125 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1775 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| SPEC. | 12B001Y580G1 |
|---|---|
| HP | 40 |
| RPM | 1775 |
| VOLTS | 230/460 |
| AMPS | 96/48 |
| RATING | 40C AMB-CONT |
| PF | 82 |
| USABLE AT | 50HZ 40HP 190/380V 114/57A |
Performance
| No-Load Current | 0 A |
|---|---|
| Line-Line Res. @ 25° C | 0.16075 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 32° C |
| Temp. Rise @ S.F. Load | 39° C |
| Start Configuration | DOL |
| Break-Down Torque | 378 LB-FT |
| Pull-Up Torque | 178 LB-FT |
| Locked-Rotor Torque | 219 LB-FT |
| Starting Current | 324 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 4.0 | 45.0 | 67.0 | 77.0 | 82.0 | 84.0 | 84.0 | 83.0 | ||
| Efficiency | 0.0 | 91.7 | 94.5 | 95.0 | 94.8 | 94.3 | 93.6 | 94.5 | ||
| Speed (RPM) | 1,799 | 1,795 | 1,790 | 1,785 | 1,780 | 1,774 | 1,768 | 1,776 | ||
| Line Amps | 20.00 | 23.20 | 29.80 | 38.50 | 48.40 | 59.20 | 71.00 | 54.90 |
Parts
| 10CB3000SP | KOBX, CAST W/2.00 LEAD HOLE |
|---|---|
| 10CB3500SP | CONDUIT BOX LID, CAST |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
