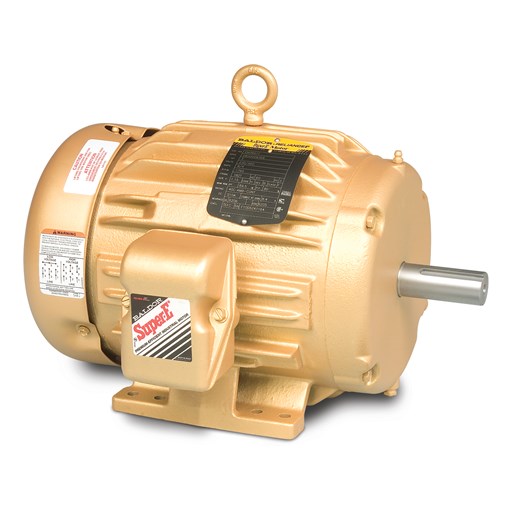

| Catalog Number | EM2394T-5 |
|---|---|
| Enclosure | TEFC |
| Frame | 254T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 15.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 575.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR NEMA PREMIUM CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 14.100 A @ 575.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 14.1 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 3 @ 12 AWG |
| Motor Type | 0930M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 23.36 IN |
| Power Factor | 86 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3525 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EM2394T-5 |
|---|---|
| SPEC. | 09P011Z588G1 |
| HP | 15 |
| VOLTS | 575 |
| AMP | 14.1 |
| RPM | 3525 |
| FRAME | 254T |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 91 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| DE | 6309 |
| ENCL | TEFC |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 0.965 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 62° C |
| Temp. Rise @ S.F. Load | 76° C |
| Start Configuration | DOL |
| Break-Down Torque | 110 LB-FT |
| Pull-Up Torque | 27.4 LB-FT |
| Locked-Rotor Torque | 38 LB-FT |
| Starting Current | 91.8 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 8.0 | 53.0 | 75.0 | 83.0 | 86.0 | 89.0 | 89.0 | 88.0 | ||
| Efficiency | 0.0 | 86.2 | 90.8 | 91.8 | 91.2 | 90.1 | 88.8 | 90.5 | ||
| Speed (RPM) | 3,599 | 3,583 | 3,565 | 3,544 | 3,523 | 3,499 | 3,473 | 3,509 | ||
| Line Amps | 4.80 | 5.82 | 8.04 | 11.00 | 14.10 | 17.30 | 21.20 | 16.00 |
Parts
| .25-20 X .75, TAPTITE II, HEX WSHR SLTD | |
| 09FH4000SP | 309 FH - BLACK PRIMER |
| 09CB3501SP | CONDUIT BOX LID FOR 09CB3001 & 09CB3002 |
| 09GS1013SP | GS FOR 09CB3501, 12CB1500 & 12CB1503 LID |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
