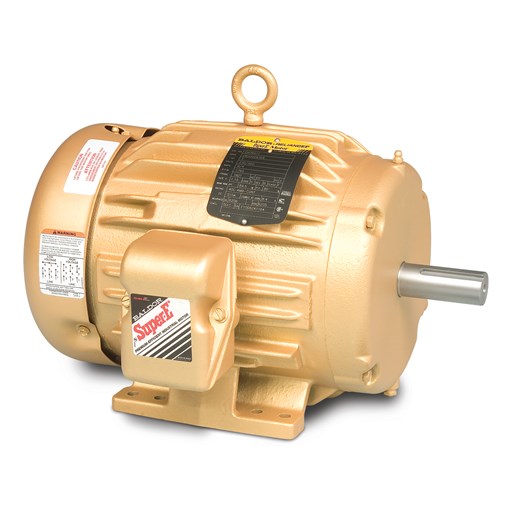

Description
Specs
| Catalog Number | EM2333T-58 |
|---|---|
| Enclosure | TEFC |
| Frame | 254T |
| Frame Material | Iron |
| Frequency | 50.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 15.000 HP @ 50 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1500 RPM @ 50 HZ |
| Voltage @ Frequency | 400.0 V @ 50 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | IE3 UR WEEE CSA CE |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 21.000 A @ 400.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.4 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 21.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | H |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 12 AWG |
| Motor Type | 0948M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 23.55 IN |
| Power Factor | 81 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 1.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Wye Start - Delta Run |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT NO | EM2333T-58 |
|---|---|
| SPEC. | 09F103Z837G1 |
| HP | 15/11.1KW |
| VOLTS | 400 |
| AMP | 21 |
| RPM | 1450 1/MIN IC411 130KG |
| FRAME | 254T |
| SER.F. | 1.15 |
| NOM.EFF. | 91.4 |
| PF | 81 |
| RATING | 40C AMB-S1 CONT |
| DE BRG | 6309 |
| ENCL | TEFC |
| BLANK | IE3-91.8(75%)91.1(50%) |
Performance
| Rated Load | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 24.10 |
Parts
| 09EP1101A11SP | PU ENDPLATE, MACH |
|---|---|
| 09CB3501SP | CONDUIT BOX LID FOR 09CB3001 & 09CB3002 |
| 09GS1013SP | GS FOR 09CB3501, 12CB1500 & 12CB1503 LID |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
