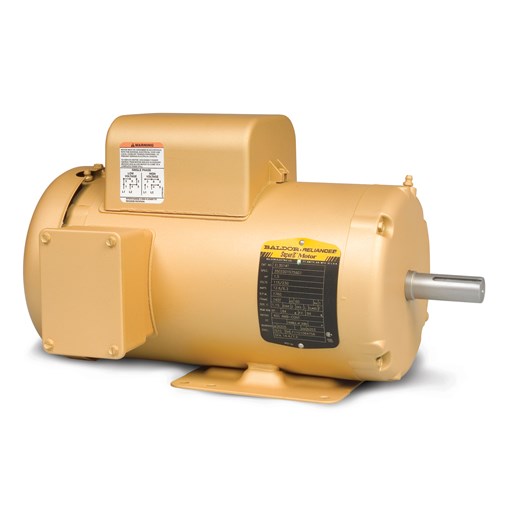

Description
Specs
Catalog Number | EL3612T |
---|---|
Enclosure | TEFC |
Frame | 184T |
Frame Material | Steel |
Frequency | 60.00 Hz |
Motor Letter Type | Cap Start, Cap Run |
Output @ Frequency | 5.000 HP @ 60 HZ |
Phase | 1 |
Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
Voltage @ Frequency | 230.0 V @ 60 HZ |
XP Class and Group | None |
XP Division | Not Applicable |
Agency Approvals | NEMA_PREMIUM UR CSA EEV CSA |
Ambient Temperature | 40 °C |
Auxillary Box | No Auxillary Box |
Auxillary Box Lead Termination | None |
Base Indicator | Rigid |
Bearing Grease Type | Polyrex EM (-20F +300F) |
Blower | None |
Current @ Voltage | 19.100 A @ 230.0 V |
Design Code | L |
Drip Cover | No Drip Cover |
Duty Rating | CONT |
Efficiency @ 100% Load | 86.5 % |
Electrically Isolated Bearing | Not Electrically Isolated |
Feedback Device | NO FEEDBACK |
High Voltage Full Load Amps | 19.1 a |
Front Face Code | Standard |
Front Shaft Indicator | None |
Heater Indicator | No Heater |
Insulation Class | F |
Inverter Code | Not Inverter |
KVA Code | G |
Lifting Lugs | No Lifting Lugs |
Locked Bearing Indicator | No Locked Bearing |
Motor Lead Exit | Ko Box |
Motor Lead Termination | Flying Leads |
Motor Lead Quantity/Wire Size | 2 @ 10 AWG, A PH |
Motor Type | 3646LC |
Mounting Arrangement | F1 |
Number of Poles | 4 |
Overall Length | 18.06 IN |
Power Factor | 97 |
Product Family | General Purpose |
Pulley End Bearing Type | Ball |
Pulley Face Code | Standard |
Pulley Shaft Indicator | Standard |
Rodent Screen | None |
Service Factor | 1.00 |
Shaft Diameter | 1.125 IN |
Shaft Extension Location | Pulley End |
Shaft Ground Indicator | No Shaft Grounding |
Shaft Rotation | Reversible |
Shaft Slinger Indicator | No Slinger |
Speed | 1735 rpm |
Speed Code | Single Speed |
Motor Standards | NEMA |
Starting Method | Direct on line |
Thermal Device - Bearing | None |
Thermal Device - Winding | None |
Vibration Sensor Indicator | No Vibration Sensor |
Winding Thermal 1 | None |
Winding Thermal 2 | None |
Drawings
Nameplate
CAT.NO. | EL3612T |
---|---|
SPEC. | 36E004Y530E7 |
HP | 5 |
VOLTS | 230 |
AMP | 19.1 |
RPM | 1735 |
FRAME | 184T |
SER.F. | 1.00 |
NEMA-NOM-EFF | 86.5 |
RATING | 40C AMB-CONT |
DE | 6206 |
ENCL | TEFC |
Performance
Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
---|---|---|---|---|---|---|---|---|---|---|
Power Factor | 60.0 | 92.0 | 96.0 | 97.0 | 97.0 | 97.0 | 96.0 | 0.0 | ||
Efficiency | 0.0 | 70.6 | 83.6 | 86.8 | 86.6 | 84.4 | 80.4 | 0.0 | ||
Speed (RPM) | 1,799 | 1,784 | 1,771 | 1,755 | 1,737 | 1,716 | 1,687 | 0 | ||
Line Amps | 3.08 | 6.05 | 9.95 | 14.30 | 19.10 | 24.50 | 31.10 | 0.00 |
Parts
36GS1000SP | GASKET-CONDUIT BOX, .06 THICK #SV-330 LE |
---|---|
36EP3100A01SP | PUEP ASSEMBLY FOR ROUTING PURPOSES |
36FN3000C01SP | EXFN, PLASTIC, 5.25 OD, .912 ID |
MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
