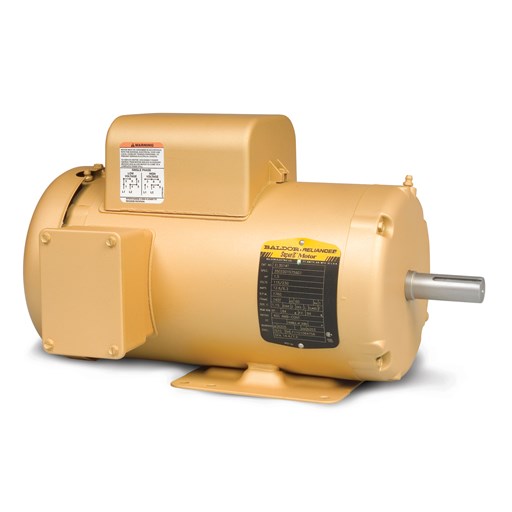

| Catalog Number | EL3606T |
|---|---|
| Enclosure | TEFC |
| Frame | 182T |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | 3.000 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR CSA EEV CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 12.400 A @ 230.0 V 24.800 A @ 115.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 82.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 12.4 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | H |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 4 @ 14 AWG, A PH |
| Motor Type | 3634LC |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 16.56 IN |
| Power Factor | 98 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.00 |
| Shaft Diameter | 1.125 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL3606T |
|---|---|
| SPEC. | 36E004S115E7 |
| HP | 3 |
| VOLTS | 115/230 |
| AMP | 24.8/12.4 |
| RPM | 3450 |
| FRAME | 182T |
| SER.F. | 1.00 |
| NEMA-NOM-EFF | 82 |
| RATING | 40C AMB-CONT |
| DE | 6206 |
| ENCL | TEFC |
Performance
| Start Configuration | DOL |
|---|---|
| Break-Down Torque | 17.8 LB-FT |
| Pull-Up Torque | 8.01 LB-FT |
| Locked-Rotor Torque | 9.84 LB-FT |
| Starting Current | 83.7 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 91.0 | 99.0 | 99.0 | 99.0 | 98.0 | 98.0 | 96.0 | 0.0 | ||
| Efficiency | 0.0 | 73.0 | 81.2 | 82.8 | 82.3 | 80.3 | 76.4 | 0.0 | ||
| Speed (RPM) | 3,592 | 3,555 | 3,526 | 3,494 | 3,458 | 3,414 | 3,348 | 0 | ||
| Line Amps | 1.03 | 3.73 | 6.45 | 9.31 | 12.40 | 15.90 | 20.80 | 0.00 |
Parts
| EC1815A06SP | ELEC CAP 115V 2.0 X 4.3 |
|---|---|
| 36GS1000SP | GASKET-CONDUIT BOX, .06 THICK #SV-330 LE |
| 36EP3100A01SP | PUEP ASSEMBLY FOR ROUTING PURPOSES |
| 36CB3800SP | CAPACITOR COVER, CAST |
| 36FN3000C01SP | EXFN, PLASTIC, 5.25 OD, .912 ID |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
